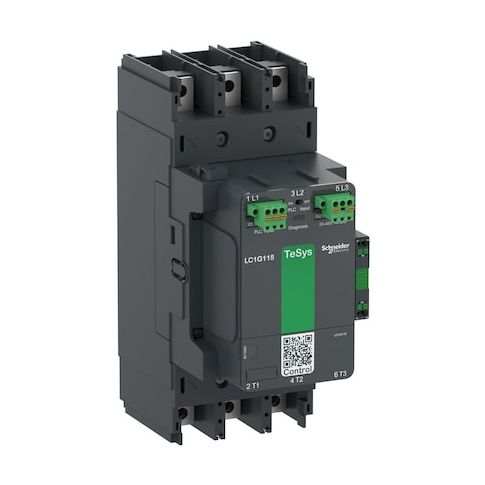

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G115EHEA
Free Shipping
In Stock
The IEC Magnetic Contactor is a versatile and reliable switching device designed for control circuit applications in a variety of industries. Rated for use in 48V-130V AC/DC environments, it features a 3-pole configuration with 1NC/1NO auxiliary contacts, making it ideal for applications requiring precise control and monitoring. Its spring-type terminal connection and plate-mounted design ensure easy installation and maintenance. Compatible with standard control panel configurations, this TeSys Giga series contactor is suitable for use in industrial automation, HVAC, and other control circuit applications, offering reliable performance and efficient operation in a range of temperatures and conditions.
Top product features:
- The IEC Magnetic Contactor is a 3-pole device rated for use in control circuit applications.
- It includes two auxiliary contacts configured as 1NC/1NO.
- It uses a spring-type terminal connection.
Top product applications:
- Control circuit applications within the specified standards
- Industrial control panels according to manufacturer specifications
- Automated machinery control systems
The IEC Magnetic Contactor is a 3-pole, plate-mounted switching device rated for use in control circuit applications within the specified standards. It is rated for coil voltages between 48V and 130V AC/DC and includes two auxiliary contacts configured as 1NC/1NO. The unit uses a spring-type terminal connection and is part of the TeSys Giga series, compatible with standard control panel configurations according to manufacturer specifications.
Key features
- - Coil voltage: 48V-130V AC/DC
- - Contactor style: IEC
- - Phase: Single
- - Number of poles: 3
- - Auxiliary contacts: Yes (2 total
- form 1NC/1NO)
- - Terminal connection type: Spring Type
- - Mounting style: Plate
- - Embedded surge suppressor: No
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 1000V AC
- - IP rating: IP20
- - Full load amps (inductive): 210 A
- - Full load amps (resistive): 250 A
- - Full load current (inductive): 115 A
- - Full load current (resistive): 250 A
- - Maximum operating temperature: 140 Degrees F
- - Minimum operating temperature: -13 Degrees F
- - Dimensions (approx.): depth 7.6 in, height 10.04 in, width 4.25 in
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.35
- Package Width: 9.45
- Package Height: 9.84
- Package Weight: 11.60
