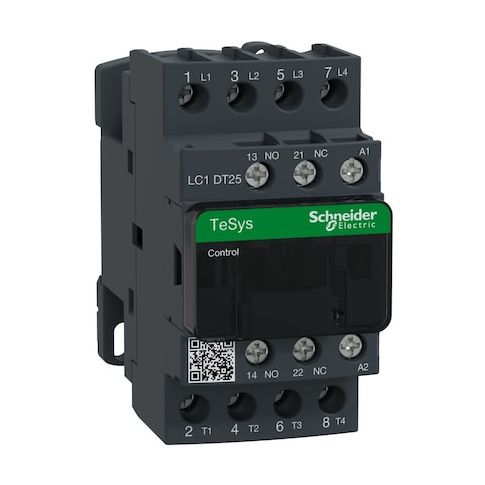

main product photo

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT25LE7

Discount: See in Cart
Free Shipping
In Stock
Brand: Schneider
Part #: LC1DT25LE7
UPC: 3389110333954
SKU
510-G510080872
Regular Price $309.39 Special Price $220.99

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
IEC Magnetic Contactor, 1NC/1NO, 208V AC, 4 P, Non-Reversing, Screw Clamp

The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for controlling motors, lighting, and other compatible loads when used as intended. This non-reversing design, 4-pole model equipped with auxiliary contacts (1 NC / 1 NO) as specified, a 208V AC coil, screw-clamp terminals, and mounting compatible with DIN rail or plate installations as part of the TeSys Deca family.

- Coil voltage: 208V AC

  • - Contactor style: IEC
  • - Poles: 4
  • - Auxiliary contacts: 2 (1 NC / 1 NO) as specified
  • - Reversing capability: non-reversing design
  • - Phase: Single
  • - Maximum voltage rating: rated for use at voltages up to 690V AC within specified conditions
  • - Frequency: 50/60 Hz
  • - Full load current: 25 A (inductive and resistive)
  • - IP rating: IP20
  • - Mechanical operating durability: mechanical endurance tested to approximately 15 million cycles under standard testing conditions
  • - Electrical operating durability: electrical endurance rated at approximately 800,000 cycles under specified test conditions (AC-1 load type)
  • - Mounting style: DIN Rail, Plate
  • - Terminal connection type: Screw Clamp
  • - Series: TeSys Deca
  • - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • - Dimensions (approx.): Depth 3.62 in, Height 3.35 in, Width 1.77 in


    • Additional Information

    • Country of Origin: SG
    • Drop Ship Item: Yes
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 51 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 2.20
    • Package Width: 3.90
    • Package Height: 4.80
    • Package Weight: 0.84
    Product info last updated on February 5, 2026 7:13pm UTC Category: Industrial Electrical Controls and Automation
