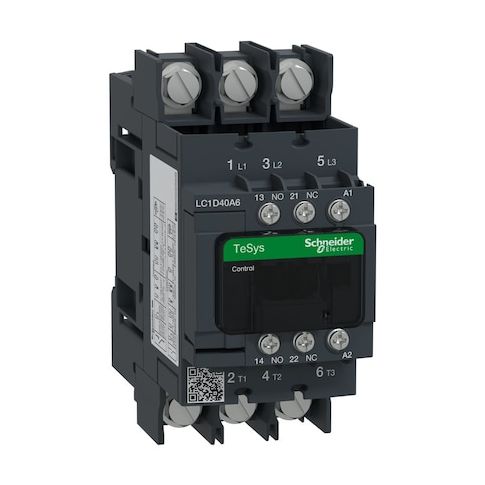

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:LC1D40A6G7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style device with a 120V AC coil and auxiliary contacts configured as 1NC/1NO (2 total). It is rated for switching power circuits in accordance with IEC standards and supports three-phase operation at 60 Hz within its specified voltage range. The unit mounts on DIN Rail or Plate

• it includes two auxiliary contacts. Mechanical durability: up to approximately six million cycles
• electrical durability: up to approximately one million four hundred thousand cycles (AC-1), one million five hundred thousand cycles (AC-3/AC-3e). It does not include an embedded surge suppressor
• it has an IP20 ingress protection rating. Complies with standards including CSA C22.2 No 14
• EN 60947 series
• IEC 60335 series
• UL 508 among others.

  - Coil voltage: 120V AC

• - Poles/Phase: 3, Three-phase
• Reversing: Non-Reversing
• - Auxiliary contacts: 2 total (1NC/1NO)
• - Maximum voltage rating: 690V AC
• - Frequency: 60 Hz
• - Mounting: DIN Rail, Plate
• - IP rating: IP20 ingress protection
• - Mechanical durability: up to six million cycles
• - Electrical durability: up to 1.4 million cycles (AC-1)
• 1.5 million cycles (AC-3/AC-3e)
• - Full load amps: Inductive 150 A
• Resistive 200 A
• - Full load current: Inductive 40 A
• Resistive 200 A
• - Horsepower: 3 hp @ 120V
• 5 hp @ 240V
• 10 hp @ 208V/240V
• 30 hp @ 480V/600V
• - Series: TeSys Deca
• Item: IEC Magnetic Contactor
