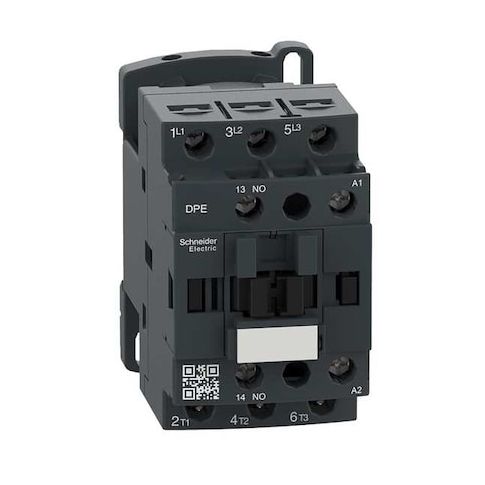

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE09G7

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a motor control and resistive load device designed for industrial applications. This non-reversing contactor operates with a coil voltage of 120V AC, making it compatible with specified electrical systems. It features screw clamp terminals for secure electrical connections and has an auxiliary contact form of 1NO. With its compact dimensions (3.39 in depth, 3.03 in height, and 1.77 in width), this unit can be conveniently mounted on DIN rails or plates.

  Key Features:

• - Operates within control circuit voltage limits: Drop-Out: 0.3 to 0.6 Uc (at 70°C 50/60 Hz)
• Operational: 0.8 to 1.1 Uc (at different temperatures and frequencies).
• - Electrical durability ranges from .6 Mcycles at less than the maximum voltage to one Mcycle at lower amperage.
• - Enclosure NEMA rating is both '3R' and '4', rated for specific environmental conditions as per NEMA '3R' and '4'.
• - The unit's frame belongs to the TeSys series.
• - Full Load Amps are rated at nine amps for both Inductive and Resistive loads.
• - Horsepower output is dependent on phase configuration and voltage range
• For example, under specific configurations such as Single Phase -120V AC or Three Phase -600V AC, the unit can support different horsepower outputs.
• -The IP20-rated product includes one auxiliary contact point, three normally open main contacts, and has an operating speed of up to three thousand six hundred cycles per hour.
• -The device complies with several standards including CSA C22.2 No14, EN60947 series, UL Listed among others in accordance with jurisdictional requirements."
