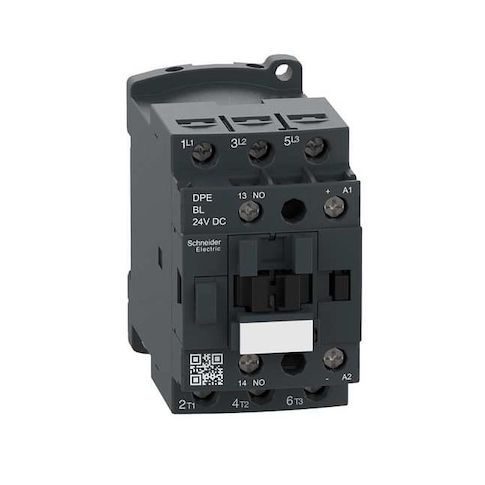

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:DPE12BL

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil. Rated for use in motor control and resistive load switching applications. Includes 3 normally open main contacts and 1 normally open auxiliary contact (1NO). The contactor features screw clamp terminals

• compatible with DIN rail or plate mounting methods. Rated for operation within specified voltage ranges of up to 690 V AC / 300 V DC and operates at standard frequencies of 50/60 Hz
• enclosure specifications are as provided
• net weight approximately 0.32 kg.

  - Coil Voltage: 24 V DC

• - Poles: 3
• - Main Contacts: 3 NO
• - Auxiliary Contacts: 1 NO
• - Reversing: Non-Reversing
• - Frame / Series: TeSys Easy
• - Mounting: DIN Rail, Plate
• - Terminal Connection: Screw Clamp
• - Max Voltage: Up to 690 V AC / 300 V DC (rated for voltages within specified maximums)
• - Frequency: 50/60 Hz (Rated at standard frequencies)
• - Enclosure / IP: No Enclosure
• IP20 ratings are as specified.
• - Includes Auxiliary Contacts: Yes
• - Built-in Suppressor Module: No information provided.
• - Signalling Circuit Details:
  • - Minimum Switching Voltage ≥ 17 V
  • Insulation Resistance ≥ 10 MΩ
  • Switching Current ≥ 5 mA. - These parameters specify electrical characteristics but do not guarantee performance under all conditions.
  • - Rated Currents: 12 A (full load, resistive/inductive)
  • - Rated Making/Breaking Capacity: 250 A @ 440 V (Power/Signalling circuits as listed)
  • - Operation Times: Closing 65.45–88.55 ms
  • Opening 20–30 ms
  • - Dimensions: Depth 3.39 in
  • Height 3.03 in
  • Width 1.77 in
  • - Standards: CSA, EN 60947-4-1, EN 60947-5-1, UL Listed, UL 60947-4-1
