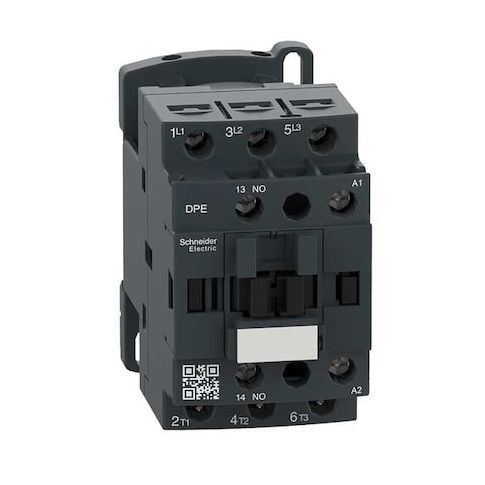

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE18G7
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device ideal for motor control and resistive loads. With its 3-pole, non-reversing design and 120V AC coil, it provides seamless control and protection for your equipment. The device is part of the TeSys family, known for its high-quality and durability. Its screw clamp terminals and IP20 enclosure ensure easy installation and reliable operation. Suitable for a wide range of applications, including industrial automation, HVAC, and power distribution, this contactor offers a cost-effective solution for minimizing downtime and maximizing productivity.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 poles with 3 normally open (NO) main contacts.
- It has a screw clamp terminal design for easy connection.
- It is a non-reversing device, meaning it does not change the direction of the motor load.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Resistive Load Control
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 120 V AC coil and 1 normally open auxiliary contact (1NO). It uses screw clamp terminals and is rated for use with motor control and resistive loads within specified parameters. The device is part of the TeSys family and is rated for operation at 50/60 Hz within the specified voltage range up to 690 V AC. Main contacts total 3 NO, complemented by 1 NO auxiliary contact
- does not include reversing functionality.
- Coil voltage: 120 V AC
- - Poles/Main Contacts: 3 poles
- 3 NO main contacts
- Auxiliary contact: 1 NO
- - Reversing: Non-Reversing
- - Terminals: Screw Clamp
- - Enclosure: IP20
- Enclosure ratings are as specified
- no additional enclosure features implied
- - Series: TeSys
- - Frequency: 50/60 Hz
- - Maximum/Insulation Voltage: 690 V AC
- Rated Insulation: 600/690 V
- - Full Load Amps: Inductive 18 A
- Resistive 18 A
- - Rated Making Capacity: Rated making capacity based on standard testing conditions
- - Rated Breaking Capacity: Rated breaking capacity under specified test conditions
- - Embedded Surge Suppressor: does not include an embedded surge suppressor
- - Dimensions/Weight: Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- Net weight 0.325 kg
- - Mounting: compatible with mounting on DIN rail or plate according to installation instructions
- - Mechanical/Electrical Durability: tested durability within standardized cycles under controlled conditions
- - Operating Time/Non-Overlap: operating times are based on typical performance specifications under test conditions
- - Hold VA: power consumption during holding is within the rated values at specified frequencies and temperatures
- - Impulse/Signal: signal characteristics are as per manufacturer specifications for signalling circuits only
- - Fuses: fuse ratings are provided as per product design specifications, subject to proper application guidelines
- - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
- - Special Features: Overvoltage Category III
- Minimum Switching Voltage 17 V Signalling Circuit
- Insulation Resistance 10 MΩ Signalling Circuit
- - Environmental: Mercury Free
- Toxic Heavy Metal Free
- Pollution Degree 3
- - Series/Model Details: TeSys
- - Additional ratings: Max. Temperature 850°C (max.), Maximum Operating Temperature 140°F
- Rated Voltage 690V AC, 300V DC
- Resistance/Impedance 2.5 mΩ
- - Reversing/Signalling: Non-Reversing
- Includes Auxiliary Contacts: Yes
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.80
- Package Height: 2.20
- Package Weight: 0.75
