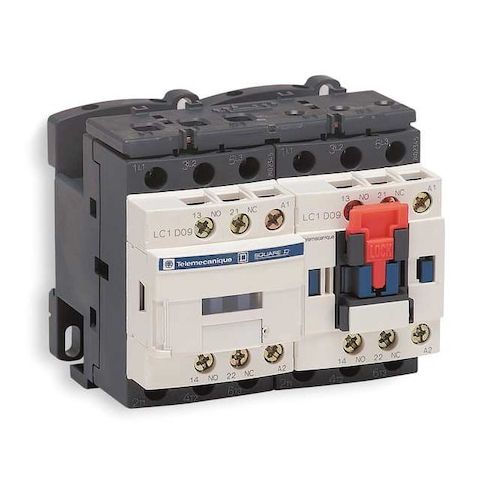

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2D09B7V
Free Shipping
In Stock
The IEC Magnetic Contactor is a versatile 3-pole device ideal for motor control and resistive-load applications. Its 24V AC coil and reversing action make it suitable for various industrial settings. With 2 auxiliary contacts and 3 normally open main contacts, it provides reliable switching and control. This TeSys Deca series product is designed for DIN Rail or Plate mounting, offering flexibility and ease of installation. Its robust construction and high durability ensure long-term performance, making it an excellent choice for applications in the manufacturing, processing, and automation industries.
Top product features:
- The IEC Magnetic Contactor is a 3-pole reversing device that can switch power circuits in motor control and resistive-load applications.
- It has 2 auxiliary contacts, including 1 normally open and 1 normally closed, alongside 3 normally open main contacts.
- It operates within standard frequency ranges and supports DIN Rail or Plate mounting.
Top product applications:
- Motor control
- Resistive-load applications
- DIN Rail or Plate mounting
The IEC Magnetic Contactor is a 3-pole reversing device with a 24 V AC coil, designed to switch power circuits in motor control and resistive-load applications. It belongs to the TeSys series and is configured with 2 auxiliary contacts (1 normally open and 1 normally closed) alongside 3 normally open main contacts. The unit supports DIN Rail or Plate mounting and has no enclosure, with no embedded surge suppressor. It is rated for operation within the specified voltage ranges and operates within standard frequency ranges as specified.
- Action: Reversing
- - Coil Voltage: 24 V AC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Auxiliary Contact Form / Configuration: 1NC/1NO / 1NO/1NC
- - Series: TeSys Deca
- - Mounting: DIN Rail, Plate
- - Enclosure: No Enclosure
- IP20
- - Rated Voltage: 690 V AC, 300 V DC
- 50/60 Hz
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, plus others
- - Load currents (typical): 9 A inductive, 20 A resistive (full load)
- - Embedded features: No surge suppressor
- - Includes interlocks: Electrical Interlock, Mechanical Interlock
- - Mechanical / Electrical durability: 15 Mcycles (mechanical), 2,000,000 cycles (electrical)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 3.60
- Package Height: 3.40
- Package Weight: 1.80
