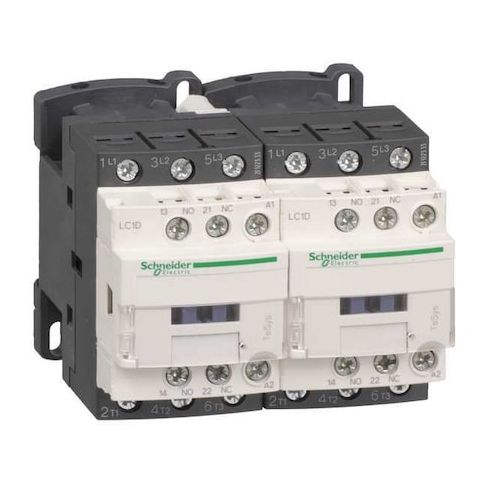

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2D09B7
Out Of Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and reversing 3-phase loads in various applications. Ideal for use in industrial settings, this device provides 3 main normally open contacts and 2 auxiliary contacts for flexible control options. Its 24V AC coil and screw clamp terminals make it easy to integrate into existing systems. With a rated voltage of up to 690V AC and a making capacity of 250A, this contactor is designed for heavy-duty use. Suitable for applications such as conveyor systems, pumps, and motors, it ensures safe and reliable operation in a range of industries.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 main normally open contacts.
- It is capable of reversing operation when installed and used according to instructions.
- It features screw clamp terminals for wiring.
Top product applications:
- Heavy Industrial Automation
- Power Generation and Distribution
- High-Density Data Centers
The Schneider Electric IEC Magnetic Contactor is a TeSys Deca 3-pole reversing device with a 24 V AC coil. It is rated for operation within specified electrical parameters.
It features 3 main normally open contacts and provides 1 normally open/1 normally closed auxiliary contact (2 auxiliary contacts total) in a configuration intended for use with compatible load types as specified by manufacturer, with screw clamp terminals for wiring.
Key features:
- - Poles/phase: 3 poles, 3-phase
- - Action: capable of reversing operation when installed and used according to instructions
- - Coil voltage: 24 V AC
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts: 3 normally open
- - Contactor style/series: IEC, TeSys Deca
- - Electrical connections: Screw Clamp terminals
- - Enclosure/IP: rated with IP20 protection rating
- enclosure requirements depend on application environment
- - Includes: components as provided
- proper installation required
- - Mounting: DIN Rail, Plate
- - Included auxiliary contacts: Yes
- - Rated voltage: rated for use at voltages up to 690V AC within specified conditions
- - Frequency: 50/60 Hz
- - Full load amps: rated for continuous operation at indicated current levels under normal conditions
- - Rated making capacity: 250 A @ 440V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Fire rating: UL 94 V1
- - Weight: 0.687 kg
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 4.60
- Package Height: 3.70
- Package Weight: 1.80
