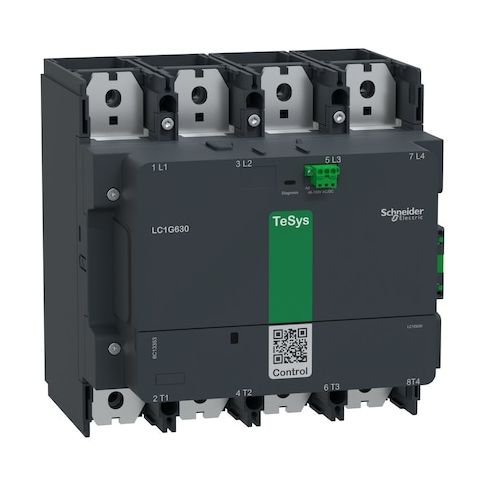

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 4 P, Spring Type MPN:LC1G6304KUEN

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, spring-type control device rated for operation within the specified IEC standards. It uses a coil rated at 100V-250V AC/DC and is compatible with single-phase applications as specified. The unit includes two auxiliary contacts (1NC/1NO) and is part of the TeSys Giga series. It is rated for operation up to 1000V AC within specified parameters, IP20 protection, plate mounting, and operates within a temperature range of -13°F to 140°F. Its mechanical durability has been tested to withstand up to 5,000,000 cycles under standard conditions.

  - Auxiliary contacts: 2 total (1NC/1NO)

• Includes auxiliary contacts: Yes
• - Coil voltage: 100V-250V AC/DC
• - Poles: 4
• Phase: Single
• - Mounting style: Plate
• - Terminal connection type: Spring Type
• - Maximum voltage rating: 1000V AC
• - IP rating: IP20
• - Frequency: 50/60 Hz
• - Full Load Amps: Inductive 850 A
• Resistive 1,050 A
• - Full Load Current: Inductive 630 A
• Resistive 1,050 A
• - Maximum/Minimum Operating Temperature: 140°F / -13°F
• - Mechanical operating durability: Has been tested to withstand up to 5,000,000 cycles under standard conditions
• - Series: TeSys Giga
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
• - Item: IEC Magnetic Contactor
• - Overall dimensions: Depth 10.47 in
• Height 11.18 in
• Width 11.06 in
