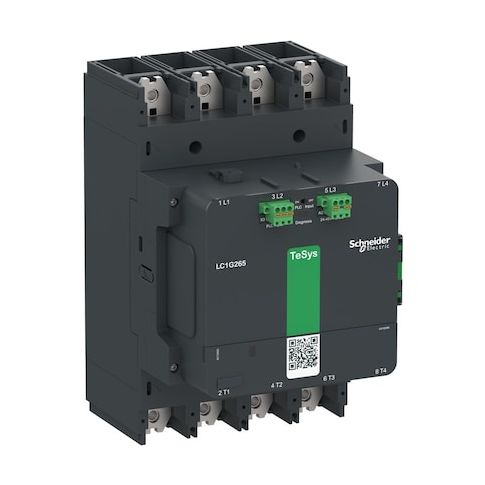

IEC Magnetic Contactor, 1NC/1NO, 24V-48V AC/DC, 4 P, Spring Type MPN:LC1G2654BEEA
Free Shipping
In Stock
The Schneider Electric TeSys Giga IEC Magnetic Contactor is a reliable and efficient device for controlling electrical circuits. Suitable for a wide range of applications, including industrial and commercial settings, this 4-pole contactor operates on 24V-48V AC/DC and features spring-type terminals for easy connection. With a maximum operating temperature of 140°F and a minimum operating temperature of -13°F, it can withstand various environmental conditions. The device meets international standards, including CSA and UL, and is designed for plate mounting, making it easy to integrate into existing systems. Its high durability and versatility make it an ideal choice for various applications.
Top product features:
- The item has a 4-pole configuration.
- The unit has a spring-type terminal connection.
- The coil operates on 24V-48V AC/DC.
Top product applications:
- Industrial Automation
- Motor Control Centers
- Power Distribution Systems
The item is an IEC Magnetic Contactor from Schneider Electric. It is a 4-pole device with a 1NC/1NO auxiliary contact configuration and spring-type terminals, from the TeSys Giga family. The coil operates on 24V-48V AC/DC
- the unit is designed for plate mounting.
Key features
- - Coil voltage: 24V-48V AC/DC
- - Auxiliary contacts: 1NC/1NO (2 total)
- Includes Auxiliary Contacts: Yes
- - Number of Poles: 4
- - Phase: Single
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: Rated for operation up to 1000V AC within specified conditions.
- - IP Rating: IP20
- - Mounting Style: Plate
- - Terminal Connection Type: Spring Type
- - Series: TeSys Giga
- - Item: IEC Magnetic Contactor
- - Mechanical Operating Durability: Rated for up to 8,000,000 cycles under specified testing conditions.
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Overall Dimensions are provided as specifications
- actual performance may vary based on installation and environment.
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 4
- Unit of Measure: EA
- Package Length: 14.57
- Package Width: 10.04
- Package Height: 11.93
- Package Weight: 22.05
