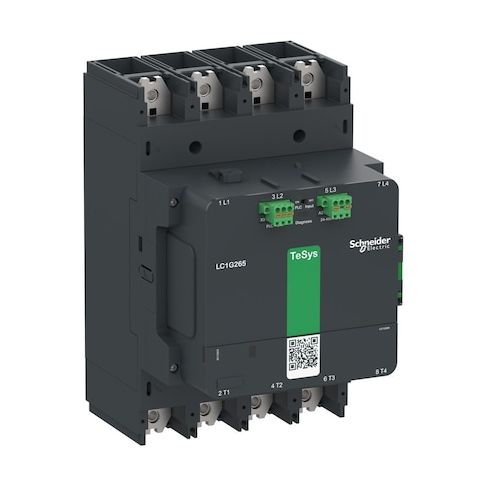

The IEC Magnetic Contactor from Schneider Electric is an electrically operated switching device that uses an electromagnetic coil to open or close contacts, enabling control of power circuits in accordance with IEC standards. It is rated for operation within the specified load conditions. It is designed for reliable switching of motors, lighting, and other industrial loads.
- Auxiliary contact form: 1NC/1NO (two auxiliary contacts: one normally closed, one normally open)
- Includes auxiliary contacts: Yes
- Coil voltage: 200V-500V AC/DC
- Contactor style: IEC
- Embedded surge suppressor: No
- Frequency: 50/60 Hz
- Full Load Amps – Inductive: 390 A
- Full Load Amps – Resistive: 440 A
- Full Load Current – Inductive: 330 A
- Full Load Current – Resistive: 440 A
- IP rating: IP20
- Item: IEC Magnetic Contactor
- Maximum Operating Temperature: 140 Degrees F
- Maximum Voltage Rating: 1000V AC
- Mechanical Operating Durability: 8000000
- Minimum Operating Temperature: -13 Degrees F
- Mounting Style: Plate
- Number of Poles: 4
- Overall Depth: 4.8 in
- Overall Height: 11.42 in
- Overall Width: 7.28 in
- Phase: Single
- Series: TeSys Giga
- Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
