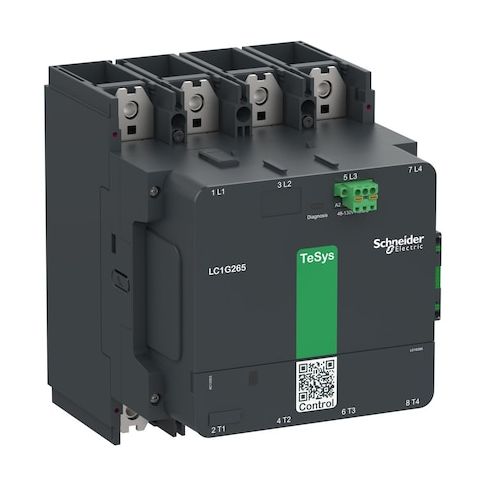

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G2654EHEN

Discount: See in Cart
Free Shipping
In Stock
Brand: Schneider
Part #: LC1G2654EHEN
UPC: 3606481922069
SKU
510-G410354349
Regular Price $3,891.71 Special Price $2,779.79

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type

The IEC Magnetic Contactor is a four-pole, electrically operated switch designed to control power circuits in industrial control systems. It uses a coil rated for 48V-130V (AC/DC) to energize the contact set, with auxiliary contacts configured as 1NC/1NO. The device features a plate mounting style with spring-type terminals, belongs to the TeSys Giga series, and is rated for operation within the specified voltage range of 1000V AC in a single-phase configuration. It carries IP20 protection and has a mechanical durability rating based on standard testing conditions, with an operating temperature range from -13°F to 140°F. Dimensions are approximately 7.28 inches wide, 8.86 inches high, and 4.8 inches deep.

- Item: IEC Magnetic Contactor

  • - Poles: 4
  • - Phase: Single
  • - Coil voltage: 48V-130V AC/DC
  • - Auxiliary contact form: 1NC/1NO
  • - Includes auxiliary contacts: Yes (2 total)
  • - Mounting style: Plate
  • - Terminal connection: Spring Type
  • - Maximum voltage rating: 1000V AC
  • - IP rating: IP20
  • - Embedded surge suppressor: No
  • - Frequency: 50/60 Hz
  • - Full load amps (inductive): 340 A
  • - Full load amps (resistive): 385 A
  • - Full load current (inductive): 265 A
  • - Full load current (resistive): 385 A
  • - Maximum operating temperature: 140°F
  • - Minimum operating temperature: -13°F
  • - Mechanical durability rating: Based on standard testing conditions
  • - Dimensions (W×H×D): dimensions are approximately 7.28 inches wide, 8.86 inches high, and 4.8 inches deep
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Surface mounting: Plate type (Mounting Style)


    • Additional Information

    • Country of Origin: CN
    • Drop Ship Item: Yes
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 63 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 12.60
    • Package Width: 12.20
    • Package Height: 10.24
    • Package Weight: 20.04
