IEC Magnetic Contactor, 1NC/1NO, 24V-48V AC/DC, 3 P, Spring Type MPN:LC1G265BEEA
Free Shipping
In Stock

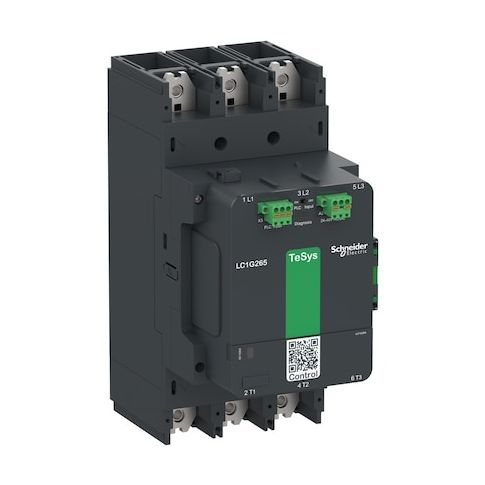

The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device ideal for various applications, including industrial control systems, motor control, and power distribution. Its 3-pole design with 1NC/1NO auxiliary contacts and spring-type terminals offers flexibility and ease of use. With a wide operating voltage range of 24-48V AC/DC and a high maximum voltage rating of up to 1000V AC, this contactor is suitable for use in a variety of environments. Its robust design and high mechanical durability make it a great choice for applications requiring frequent switching operations, such as in industrial automation and power generation.
Top product features:
- Has two auxiliary contacts for added functionality
- Switches 3-pole with a spring-type terminal connection for reliable operation
- Rated for up to 1000 V AC and tested for 8 million mechanical operations for durability
Top product applications:
- Industrial Automation
- Motor Control
- Power Distribution
Schneider Electric IEC Magnetic Contactor is a 3-pole switching device with 2 auxiliary contacts (form 1NC/1NO) energized by a 24–48 V AC/DC coil and wired with spring-type terminals on a plate mount. It follows IEC standards and is part of the TeSys Giga series, rated for operation within the specified voltage ranges (up to 1000 V AC) and IP20 protection. The unit carries multiple standards (CSA, EN/IEC, JIS, UL) and is intended for use within the specified temperature range (-13°F to 140°F). It has been tested to withstand up to approximately 8 million mechanical operations under standard conditions.
- Auxiliary contact form: 1NC/1NO
- Includes two auxiliary contacts
- - Coil voltage: 24–48 V AC/DC
- - Contactor style: IEC
- Item: IEC Magnetic Contactor
- - Embedded surge suppressor: No
- - Frequency: 50/60 Hz
- - Full Load Amps (Inductive/Resistive): 340 A / 385 A
- - Full Load Current (Inductive/Resistive): 265 A / 385 A
- - IP rating: IP20
- - Maximum voltage rating: Up to 1000 V AC
- - Mechanical durability: Has been tested to withstand up to approximately 8 million mechanical operations under standard conditions
- - Operating temperature range: -13°F to 140°F
- - Mounting style: Plate
- - Number of poles: 3
- - Phase: Single
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Terminal connection type: Spring Type
- - Dimensions (approx.): Depth 4.8 in
- Height 11.42 in
- Width 5.51 in
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.37
- Package Width: 12.20
- Package Height: 8.86
- Package Weight: 18.89
