IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G330EHEA
Free Shipping
In Stock

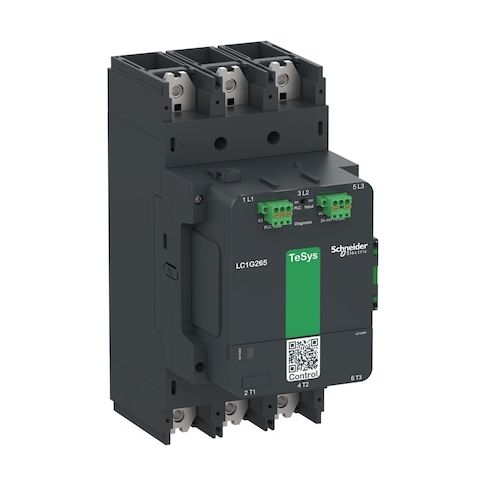

The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits in various applications. Suitable for use in industrial, commercial, and residential settings, this 3-pole contactor features a spring-type terminal connection and is rated for operation within a wide voltage range of 48V-130V AC/DC. Its compact design and robust construction make it ideal for use in control panels, motor starters, and other applications where a high level of reliability and durability is required. With its long lifespan and high current capacity, this contactor is a great choice for a wide range of applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor controls power circuits using an electromagnetic coil to open or close contacts.
- It includes an auxiliary contact configuration of 1 normally closed / 1 normally open.
- It is rated for operation within the specified coil voltage range of 48V-130V AC/DC.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, electrically operated switching device (IEC standard) that controls power circuits using an electromagnetic coil to open or close contacts. It includes an auxiliary contact configuration of 1 normally closed / 1 normally open
- specifications are as provided. Rated for operation within the specified coil voltage range of 48V-130V AC/DC. It belongs to the TeSys Giga series.
- It includes an auxiliary contact configuration of 1 normally closed / 1 normally open
- specifications are as provided.
- - Rated for operation within the specified coil voltage range of 48V-130V AC/DC
- - Contactor style: IEC
- Item: IEC Magnetic Contactor
- Poles: 3
- Phase: Single
- - Terminal connection: Spring Type
- Mounting: Plate
- - Rated for voltages up to 1000V AC according to applicable standards
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Full Load Amps: Inductive 390 A
- Resistive 440 A
- Full Load Current: Inductive 330 A
- Resistive 440 A
- - Tested to mechanical durability standards
- actual lifespan may vary based on usage conditions
- - Rated for operation within the specified temperature range: -13°F to 140°F
- - Dimensions: Depth 4.8 in
- Height 11.42 in
- Width 5.51 in
- - Series: TeSys Giga
- Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.57
- Package Width: 9.45
- Package Height: 12.20
- Package Weight: 19.07
