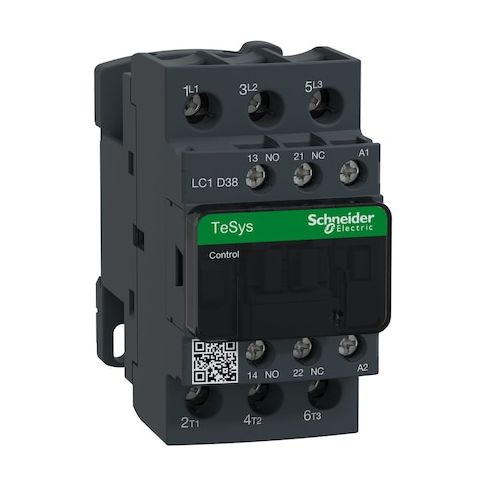

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38P7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for industrial settings, offering a non-reversing, three-phase design with a 230V AC coil voltage. Its compact dimensions and screw clamp terminal connections make it easy to integrate into existing systems. With a high cycle rating and robust mechanical operations, this contactor can handle demanding applications. Suitable for use in a variety of industries, including manufacturing, oil and gas, and water treatment, it provides a reliable and efficient way to control and automate processes. Its high horsepower capacity and durable design make it an ideal choice for demanding applications.
Top product features:
- The product has an IP rating of IP20, suggesting it may resist entry by solid objects larger than fingers but does not guarantee resistance against liquid penetration.
- The product has a terminal connection type of screw clamp, allowing for secure connections between wires and devices.
- The product's mechanical operations have been tested up to fifteen million cycles under standard test conditions, indicating high reliability and durability.
Top product applications:
- Industrial Automation Systems
- High-Volume Manufacturing Facilities
- Large Commercial Buildings
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-phase contactor intended for use in industrial settings. It's designed to work within a coil voltage of 230V AC and has an auxiliary contact form of 1NC/1NO. The contactor is part of the TeSys Deca series and can be mounted on either a DIN rail or plate. Its compact dimensions are 3.62 inches in depth, 3.35 inches in height, and 1.77 inches in width.
Key features include:
- - Electrical operation tested up to 1,400,000 cycles under conditions of AC-1, AC-3 and AC-3e.
- - Full load amps-inductive of 150 A and full load amps-resistive of 200 A.
- - Horsepower capacity depends on the type and level of voltage: Single Phase -240V can handle up to 5hp
- Three Phases –208v can handle up to10hp
- Three Phases –240v can handle up to10hp
- Three Phases –480v can handle up to20hp
- Three Phases –600v can handle up to25hp.
- -The product has an IP rating of IP20 which suggests it may resist entry by solid objects larger than fingers but does not guarantee resistance against liquid penetration.
- -Includes two auxiliary contacts as per standard configuration.
- -Maximum recommended operational voltage is specified as no more than 690 VAC
- -Mechanical operations have been tested upto fifteen million cycles under standard test conditions
- -The terminal connection type used here is screw clamp that allows potential secure connections between wires and devices
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 44 days
- Minimum Order Quantity: 20
- Unit of Measure: EA
- Package Length: 4.41
- Package Width: 3.62
- Package Height: 1.97
- Package Weight: 0.91
