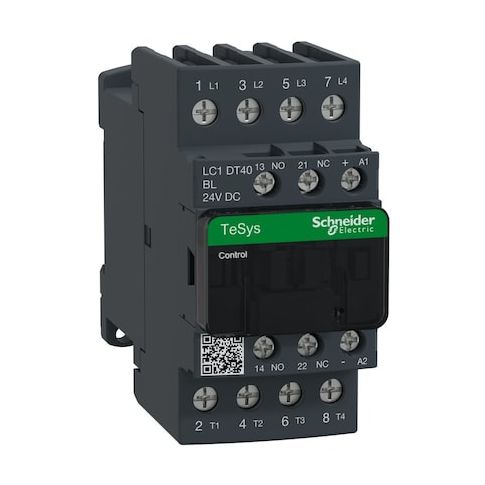

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT40BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed to control power circuits in line with IEC standards. Ideal for use in industrial and commercial applications, this four-pole, non-reversing contactor features a 24V DC coil and two auxiliary contacts with screw clamp terminals. With a maximum voltage rating of 690V AC and IP20 protection, it can be used in a variety of settings, including control panels, motor starters, and power distribution systems. Its compact design and durable construction make it a great choice for applications where space is limited.
Top product features:
- Four-pole, non-reversing operation provides a single direction of current flow.
- Two auxiliary contacts (1NC/1NO) enable multiple control and monitoring functions.
- Screw clamp terminals simplify wiring and reduce installation time.
Top product applications:
- Power circuits in industrial control systems
- Motor control and power switching in manufacturing facilities
- High-reliability switching in data centers and server rooms
Schneider Electric’s IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switching device designed to control power circuits in line with IEC standards. It features a 24V DC coil and two auxiliary contacts (1NC/1NO) with screw clamp terminals, and is part of the TeSys Deca series. The unit is a single-phase, 50 Hz device rated for operation within the specified voltage range of up to 690V AC with IP20 protection, and it can be mounted on DIN rail or plate.
- Poles and auxiliary contacts: 4 poles
- 2 auxiliary contacts (1NC/1NO)
- - Coil voltage: 24V DC
- - Reversing capability: Non-Reversing
- - Terminal type: Screw Clamp
- - Maximum voltage rating: 690V AC
- - Phase and frequency: Single, 50 Hz
- - Series: TeSys Deca
- - Mounting: DIN Rail, Plate
- - IP rating: IP20
- - Mechanical durability: 30,000,000 cycles
- - Electrical durability (AC-1): 1,400,000 cycles
- - Full-load currents: Inductive 150 A
- Full-load current - Inductive 40 A
- Full-load current - Resistive 200 A
- - Resistance properties: Fire Resistant, Insulation Resistant
- - Embedded surge suppressor: No
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- - Dimensions (D x H x W): 4.21 in × 3.58 in × 1.77 in
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.72
- Package Width: 3.74
- Package Height: 2.17
- Package Weight: 1.42
