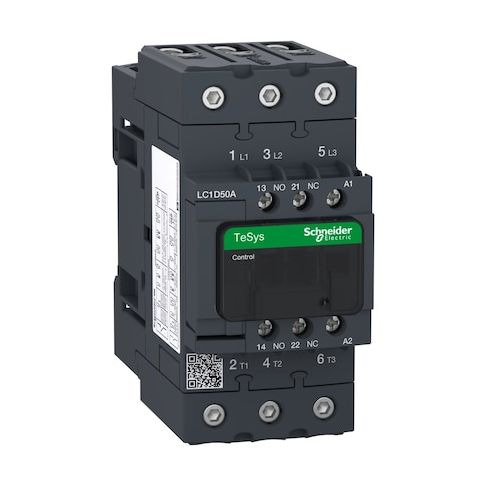

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50ALE7

• Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with coil rated at 208V AC and two auxiliary contacts (1NC/1NO). It uses screw clamp terminals and is rated for switching power circuits for motors, lighting, and other industrial loads within specified parameters. This device is part of the TeSys Deca series and offers IP20 protection.

  Key features

• - Auxiliary contacts: 2 total (1NC/1NO)
• - Coil voltage: 208V AC
• - Contactor style: IEC
• - Poles: 3
• Phase: Three
• - Reversing capability: Non-Reversing (no implied guarantee of reversibility)
• - Mounting style: DIN Rail, Plate
• - Terminal connection: Screw Clamp
• - Maximum voltage rating: 690V AC
• - Frequency: 60 Hz
• - IP rating: IP20
• - Includes auxiliary contacts: Yes
• - Mechanical operating durability: 6,000,000 cycles (specified as manufacturer’s typical rating)
• - Electrical operating durability: Ratings are provided based on testing conditions
• actual performance may vary depending on application.
• - Power ratings: Power ratings are based on standard test conditions
• actual operational capacity depends on specific installation parameters.
• - Series: TeSys Deca
• - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
