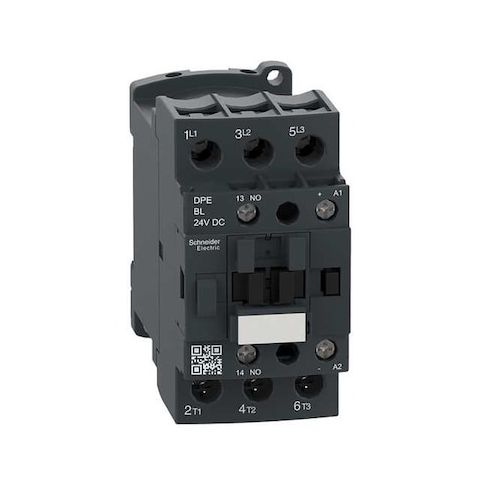

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:DPE32BL
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. With its 3-pole, non-reversing design and 24V DC coil, this device is suitable for use in a variety of settings, including industrial and commercial environments. The TeSys Easy family product offers improved performance and reduced maintenance costs, making it an ideal choice for applications where high reliability and efficiency are required. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems, providing a seamless and cost-effective solution for motor control needs.
Top product features:
- The product has 3 normally open main contacts for controlling motor and resistive loads.
- The product is a non-reversing, electrically operated switch for reliable control.
- The product has a 24 V DC coil for operation within IEC standards.
Top product applications:
- Motor control
- Resistive loads
- Power circuit applications
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC standards. It has a 24 V DC coil and uses screw clamp terminals. With 3 normally open main contacts and 1 NO auxiliary contact, this device is suitable for use with motor control and resistive loads when used within specified parameters. It is part of the TeSys Easy family.
- Coil voltage: 24 V DC
- - Poles and contacts: 3 poles
- 3 normally open main contacts
- 1 NO auxiliary contact
- - Reversing: Non-Reversing
- - Electrical connection: Screw Clamp Terminals
- - Series/Frame: TeSys Easy (IEC)
- - Rated voltage: 690 V AC / 300 V DC
- - Maximum voltage rating: 690 V AC
- - IP rating: IP20
- - Enclosure ratings: 3R
- 4
- - Mounting: DIN Rail, Plate
- - Mounts On: Plate, Rail
- - Dimensions (H x W x D): 3.35 in x 1.77 in x 3.62 in
- - Net weight: 0.37 kg
- - Frequency: 50/60 Hz
- - Rated making capacity: 140 A (AC Signalling)
- 250 A (DC Signalling)
- 450 A @ 440 V (Power Circuit)
- - Rated insulation voltage: 600/690 V
- - Overvoltage category: CAT III
- - Includes auxiliary contacts: Yes
- - Signalling circuit: 25 to 400 Hz
- Switching voltage 17 V
- Switching current 5 mA
- - Maximum operating temperature: as specified by manufacturer guidelines
- - Frame: TeSys Easy
- - Number of poles: 3
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.70
- Package Height: 2.10
- Package Weight: 1.27
