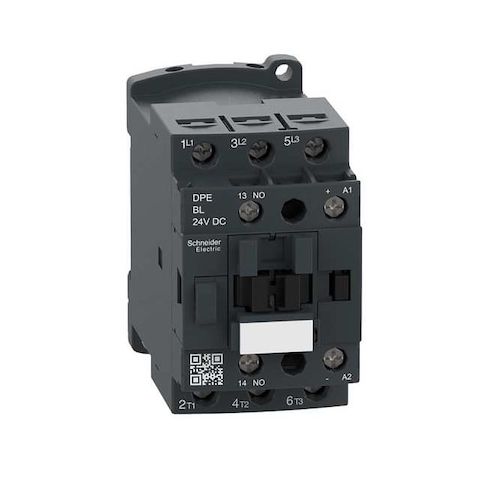

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:DPE18BL
The IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Its 3-pole design and 24V DC coil voltage make it suitable for a wide range of uses, from industrial automation to commercial settings. The non-reversing feature ensures safe and controlled operation, while the screw clamp terminals provide easy and secure connections. With a maximum voltage rating of 690V AC or 300V DC, this contactor is ideal for applications requiring high power handling. Its compact size and DIN rail mounting capabilities make it easy to integrate into existing systems, increasing productivity and efficiency.
Top product features:
- The IEC Magnetic Contactor is a 3-pole device rated for operation with motor control and resistive loads.
- The unit includes 3 normally open main contacts and 1 normally open auxiliary contact.
- The device is non-reversing, meaning it will not change the direction of the motor's rotation.
Top product applications:
- Motor Control
- Resistive Load Control
- Industrial Automation
The IEC Magnetic Contactor is a 3-pole, 24 V DC coil device rated for operation with motor control and resistive loads within specified parameters. It is non-reversing and uses screw clamp terminals. The unit includes 3 normally open main contacts and 1 normally open auxiliary contact, and is part of the TeSys Easy series (IEC style). It is rated for operation at voltages up to 690 V AC or 300 V DC, with IP20 protection and enclosure ratings of 3R and 4, and it is suitable for mounting on DIN rails or plates as specified.
Key features
- - Coil Voltage: 24 V DC
- - Poles/Main Contacts: 3 poles
- 3 NO main contacts
- - Auxiliary Contacts: 1 NO
- - Reversing: Non-Reversing
- - Termination: Screw Clamp Terminals
- - Series/Style: TeSys Easy
- IEC
- - Maximum Voltage: 690 V AC / 300 V DC
- - Frequency: 50/60 Hz
- - IP/NEMA Enclosure: IP20
- 3R and 4
- - Weight and Size: 0.325 kg
- Width 1.77 in
- Height 3.03 in
- Depth 3.39 in
- - Mounting: DIN rails or plates
- - Includes Auxiliary Contacts: Yes
- - Full Load Amps: 18 A (inductive and resistive)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 1.15
