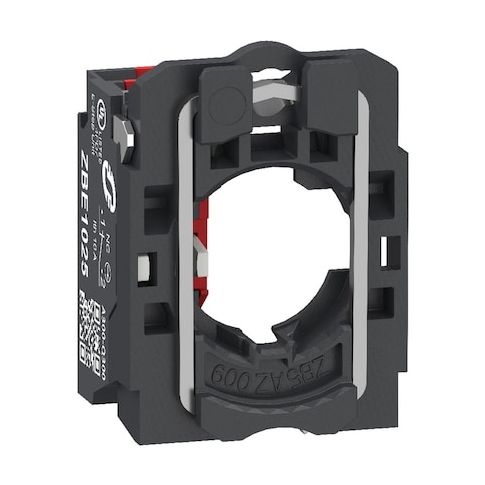

Harmony XB5, Body Contact, 1 NC, Plastic, Fixing Collar, Push-In Terminals MPN:ZB5AZ1025

This Harmony XB5, single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally closed (NC) contact. It is compatible with Harmony XB5 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This plastic product weighs 17g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications "It meets JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14,-EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes. "The modular range of Ø 22mm metal control and signaling units combines simplicity of installation, modern standard and flush mounted design."
