PCB, Socket, Slim Plug-In Relay, Square, 6 A, 5, Plug-in MPN:RSL1GB4BD
PCB, Socket, Slim Plug-In Relay, Square, 6 A, 5, Plug-in

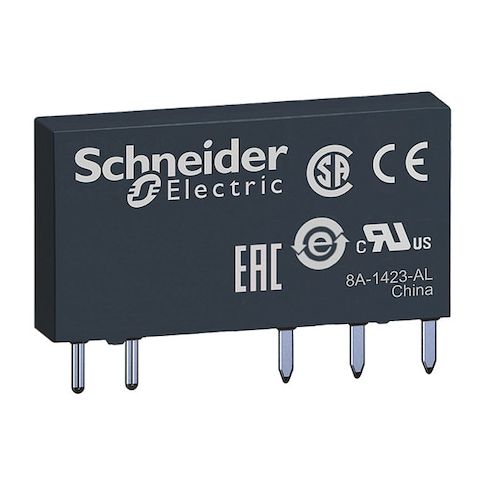

This slim plug-in relay from Schneider is designed for compact installations, featuring a square base and a low profile of 0.72 in depth and 1.1 in height. With a current rating of 6 A and a contact form of SPDT, it can handle a range of applications, including lighting control and sensor activation. Its sealed design and gold-plated silver alloy contacts ensure reliable operation, while its plug-in connection makes installation easy. Suitable for use on printed circuit boards, this relay is ideal for industrial control systems, machine automation, and other applications where space is limited.
Top product features:
- Square design for compact mounting
- SPDT contact form for switching between two circuits
- 24V DC coil voltage for operation with low-voltage power sources
Top product applications:
- Automotive systems
- Industrial control panels
- Medical equipment control systems
Slim Interface Relay, Base Type Square, Coil Voltage 24V DC, Contact Form SPDT, Current Rating 6 A, Electrical Connection Plug-In, Flat Pin Width Not Applicable, Number of Pins 5, Pin Shape Flat, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 24V, Mounting Style Printed Circuit Board and Socket, Push-To-Test Method No Button, Body Depth 0.72 in, Body Height 1.1 in, Body Width 0.19 in, Contact Material Gold Plated Silver Alloy
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.00
- Package Height: 0.10
- Package Weight: 0.10
Product info last updated on February 26, 2026 4:49pm UTC
Category: Industrial Electrical Controls and Automation
