Solid State Relay, 1 Phase, Screw Clamp, DIN Rail, SCR MPN:SSM1A312BDR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3464798

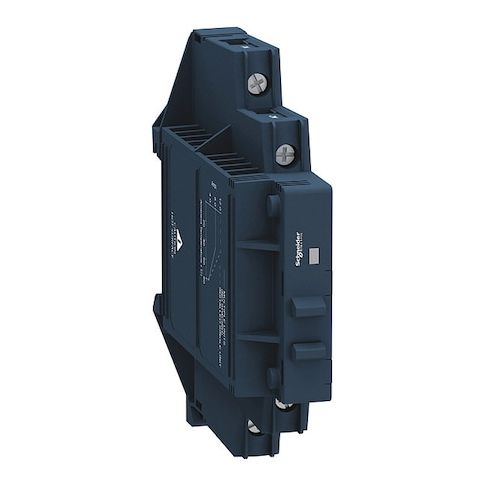

Solid State Relay, 1 Phase, Screw Clamp, DIN Rail, SCR
This solid state relay from Schneider is a reliable and efficient solution for controlling high-voltage AC loads in a variety of applications. With a compact design and integral heat sink, it can handle up to 12A of output current and operates within a wide input voltage range of 4-32V DC. Suitable for use in industrial control systems, the relay features a random/instantaneous switching mode and is certified to meet rigorous safety standards, making it an ideal choice for applications such as lighting control, motor control, and power distribution. Its compact size and DIN rail mounting make it easy to integrate into existing systems.
Top product features:
- It has a screw clamp electrical connection for easy installation.
- It has a heat sink integral to the design for improved heat dissipation and reliability.
- It can switch up to 12A of current in a single phase.
Top product applications:
- Industrial Automation Systems
- Solar Panel Charging Systems
- DC Power Supplies
Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 9 to 11 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 12 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Random/Instantaneous, Output Voltage Range 48 to 600V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.40
- Package Height: 0.90
- Package Weight: 0.15
