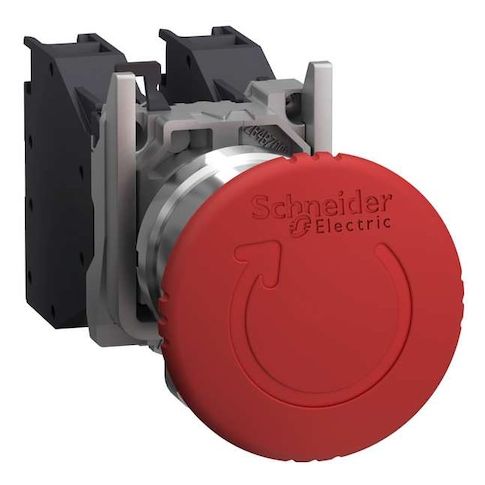

Emergency Stop Push Button, 22mm, 1NO/1NC, Red MPN:XB4BS8445GEX
Emergency Stop Push Button, 22mm, 1NO/1NC, Red
The Schneider Emergency Stop Push Button is a critical safety component designed to provide immediate shutdown in emergency situations. With a 22mm diameter and 40mm mushroom head operator, it is easily accessible and reliable. Rated for use in hazardous locations, it meets stringent standards including ANSI/ISA 12.12.01 and EN/IEC 60079. The button features a chrome-plated metal bezel and is available in a red color. Suitable for a variety of applications, including industrial machinery and hazardous environments, it provides a safe and efficient means of emergency shutdown, reducing the risk of injury and damage.
Top product features:
- 22mm diameter provides a standardized interface for easy integration with other devices.
- 1NO/1NC contact form allows for both normally open and normally closed contact operation, enabling flexible circuit control.
- 40 mm mushroom head type of operator provides a prominent and easy-to-operate push button interface.
Top product applications:
- Industrial machinery stop buttons
- Automated manufacturing systems
- Construction equipment shutdown controls
Emergency Stop Push Button, 22mm, 40 mm Mushroom Head Type of Operator, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC, Number of Operators 1, IP Rating IP65, Legend Not Applicable, Standards ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.60
- Package Height: 3.60
- Package Weight: 0.14
- Prop 65 Cancer Warning Chemical: Nickel compounds
- Prop 65 Reproductive Harm Chemical: Di-isodecyl phthalate (DIDP)
Product info last updated on February 12, 2026 3:46pm UTC
Category: Industrial Electrical Controls and Automation
