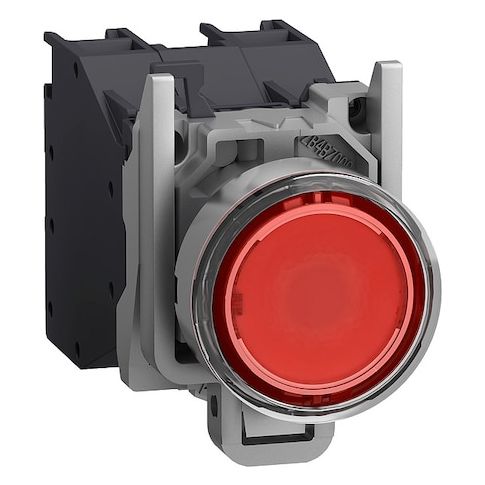

Illuminated Push Button, 22 mm, 1NC, Red MPN:XB4BP483BM5GEX
Illuminated Push Button, 22 mm, 1NC, Red
This illuminated push button from Schneider is designed for use in harsh environments, featuring an IP66 rating and ATEX certification for safe operation in explosive atmospheres. The momentary action operator provides extended illumination for clear visibility, while the metal head and bezel ensure durability. Suitable for applications in industrial control panels, the button meets ANSI/ISA, CSA, and EN/IEC standards for safety and reliability. With a contact rating of 10A @ 415V AC, it can handle demanding electrical loads. Its compact 22mm size and screw clamp terminal connection make it easy to integrate into a wide range of control systems.
Top product features:
- Momentary Action provides temporary functionality upon button press.
- Extended Illuminated Type of Operator provides prolonged visibility.
- 1NC Contact Form provides a specific type of electrical connection.
Top product applications:
- Industrial Automation
- Control Panels
- Machine Guarding
Illuminated Push Button, 22 mm, Momentary Action, Extended Illuminated Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Metal, Color Red, Contact Rating 10 A @ 415V AC, Number of Operators 1, IP Rating IP66, Legend Not Applicable, Standards ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-18:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, INERIS 04ATEX9004U, REACH, RoHS, UL 60079-0, UL 60079-18, UL 60079-31, WEEE, Terminal Connection Screw Clamp
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 26 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.24
- Package Width: 3.54
- Package Height: 3.54
- Package Weight: 0.13
- Prop 65 Cancer Warning Chemical: Nickel compounds
- Prop 65 Reproductive Harm Chemical: Di-isodecyl phthalate (DIDP)
Product info last updated on February 3, 2026 9:01am UTC
Category: Industrial Electrical Controls and Automation
