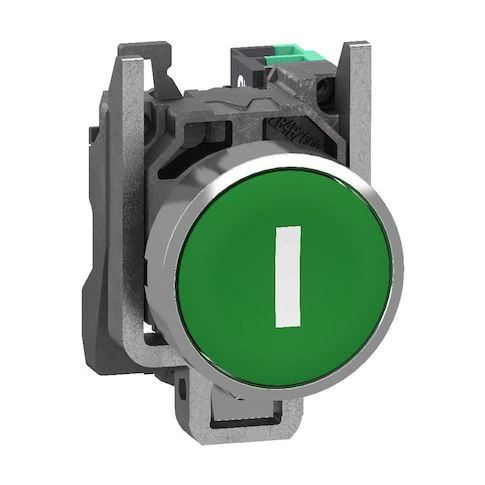

Push Button Operator, 22 mm, 1NO, Green MPN:XB4BA33115
Free Shipping
In Stock
This Harmony XB4 modular green push button provides a reliable and ergonomic interface for controlling machines in harsh environments. Its spring return mechanism and chromium-plated metal bezel ensure durability, while its IP66, IP67, IP69, and IP69K ratings protect against dust, water, and vibration. The push button is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. Suitable for industrial applications, it meets standards such as UL 508 and IEC 60947-5-5, and is certified by BV, GL, CSA, and UL. Ideal for use in factories, manufacturing plants, and other settings where reliability is crucial.
Top product features:
- Spring return mechanism
- Ergonomic interface for controlling machines
- Slow break contact
Top product applications:
- Machine control
- Industrial automation
- Process control
This Harmony XB4 modular green push button operates with a spring return mechanism. It has a chromium-plated metal bezel and is supplied with a green flush cap, marked with I (white). It features 1 NO slow break contact and push-in terminal connections. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This product is made from metal, it weighs 76g. Operator is NEMA 4, 4X and 13 rated. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications This product meets many standards, including UL 508, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4 standards, and certifications such as BV, GL, CSA, LROS (Lloyds register of shipping), DNV and UL listed. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. "It is installed into a Ø 22mm panel cutout." Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes. "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 44 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.11
- Package Width: 1.33
- Package Height: 3.43
- Package Weight: 0.17
