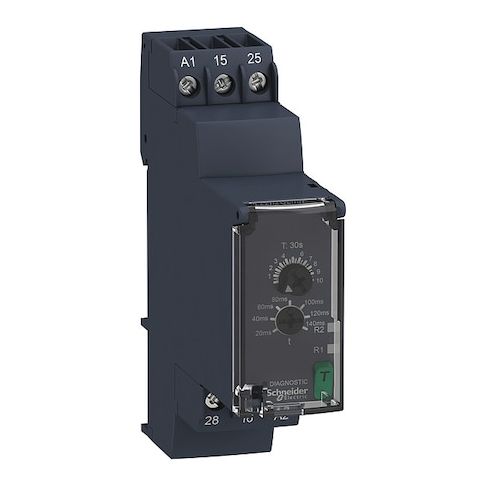

Time Delay Relay, Square, Star-Delta, 2 Functions 24 to 240V AC/DC, DPDT MPN:RE22R2QEMR
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G3460966
Time Delay Relay, Square, Star-Delta, 2 Functions 24 to 240V AC/DC, DPDT
The Schneider Time Delay Relay is a versatile and reliable solution for various applications. This square-shaped relay features a star-delta delay function and two independent delay functions, making it ideal for use in industrial control systems, machine automation, and power management. With a wide input voltage range of 24 to 240V AC/DC and a current rating of 8A, it can handle various power requirements. The relay's adjustable time delay and diagnostic button enable precise timing and troubleshooting. Suitable for use in harsh environments, it has an IP20 rating and is mounted on DIN rail for easy installation and maintenance.
Top product features:
- Time delay function with adjustable delay time from 0.3 to 30 seconds
- Diagnostic button for troubleshooting and maintenance
- Rotary dip switch for easy adjustment of relay settings
Top product applications:
- Industrial Automation
- Control Panel Design
- Power Distribution Systems
- Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 24 to 240V AC/DC, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 2, Delay Function Star-Delta, Electrical Connection Screw Terminal, IP Rating IP20
- IP40
- IP50, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.3 sec, Maximum Time Setting 30 sec, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.40
- Package Height: 1.20
- Package Weight: 0.25
Product info last updated on February 6, 2026 2:25am UTC
Category: Industrial Electrical Controls and Automation
