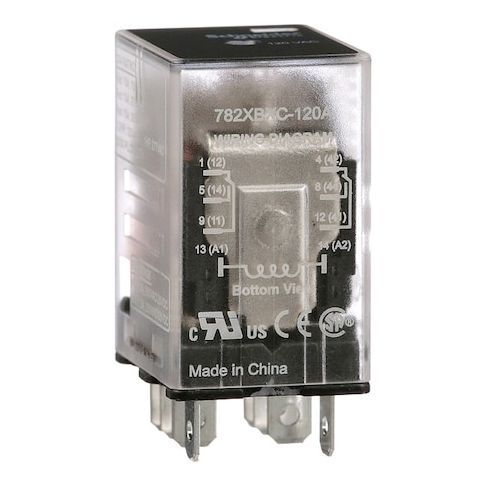

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector MPN:782XBXC-120A
Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector
The Schneider General Purpose Relay is a reliable and efficient solution for a wide range of applications, including industrial control systems, machine automation, and more. With a square base shape and 8-pin Faston connector, this relay provides a secure and easy-to-use connection for your electrical needs. Featuring a 15A current rating and DPDT contact form, it can handle high-power loads with ease. The relay also includes a mechanical flag status indicator and is suitable for use in applications up to 1/2 hp at 120V AC or 1 hp at 240V AC, making it an ideal choice for various industrial and commercial settings.
Top product features:
- Square base shape for easy mounting and installation
- DPDT contact form for multiple switching capabilities
- Faston terminal for secure and reliable electrical connections
Top product applications:
- Automotive control systems
- Industrial automation control systems
- Medical equipment control systems
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.09
Product info last updated on February 2, 2026 8:01am UTC
Category: Industrial Electrical Controls and Automation
