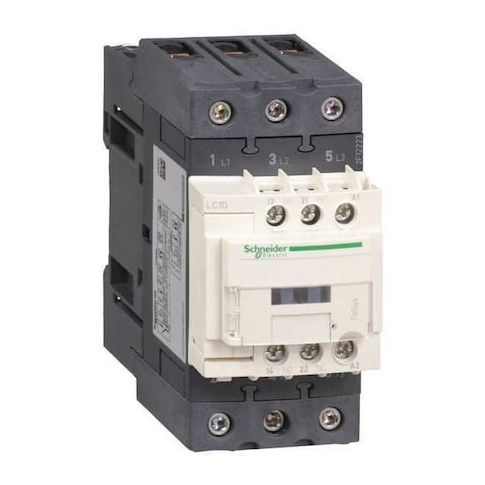

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AU7

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-phase device designed for motor control and resistive load applications. It operates on a coil voltage of 240V AC and features screw clamp terminals for secure electrical connections. The contactor has an auxiliary contact configuration of 1NO/1NC, providing flexibility in circuit design. With its compact dimensions (2.17in width x 4.61in depth), this magnetic contactor can be conveniently mounted on DIN rails or plates.

  Key Features:

• - Operates within specified frequency range of50/60 Hz
• rated for full load amps-inductive at40 A and full load amps-resistive at60 A.
• - Rated for operation within the specified horsepower ranges: from 3 hp @ single phase -120V AC to up to 30 hp @ three phase -600V AC.
• - Operating wattage range is specified between a minimum of 9 kW (at 400V AC) and a maximum of 30 kW (at both the ranges:660-690 VAC).
• - Mechanical durability tested for up to six million cycles.
• - Comes with two auxiliary contacts and three normally open main contacts.
• - Rated insulation volts stand at an impressive range between600/690 V
• - Resistant properties include fire resistance and insulation resistance based on manufacturer's testing.
• -The device is designed in compliance with multiple standards including CCC, CSA C22.2 No14, EN60947 series among others as per manufacturer's specifications.
