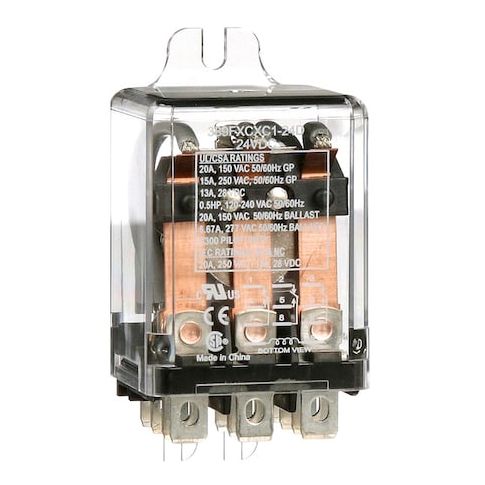

Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect MPN:389FXCXC1-24D
Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect
The Schneider Flange Mount Enclosed Power Relay is a reliable and efficient solution for applications requiring high current ratings and quick connections. Suitable for use in a variety of settings, including industrial control systems and panel building, this octal-shaped relay features 20A current rating and 11-pin quick-connect electrical connection. Its mechanical flag status indicator provides easy monitoring of relay operation. With a compact design and high horsepower rating, this relay is ideal for applications such as motor control, lighting, and HVAC systems. Its silver alloy contacts ensure reliable switching performance and long lifespan.
Top product features:
- Enclosed design protects the relay's internal components from environmental factors
- Quick-Connect electrical connection allows for easy and secure wiring
- Three-pole double-throw (3PDT) contact form enables multiple switching configurations
Top product applications:
- Automotive applications due to its high current rating and compact size
- Industrial control systems requiring a reliable and easy-to-mount relay
- Medical equipment control panels where the mechanical flag status indicator is beneficial
Enclosed Power Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form 3PDT, Current Rating 20 A, Electrical Connection Quick-Connect, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.9 in, Body Width 1.53 in, Coil Resistance 400 ohm, Contact Material Silver Alloy
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.60
- Package Height: 1.70
- Package Weight: 0.20
