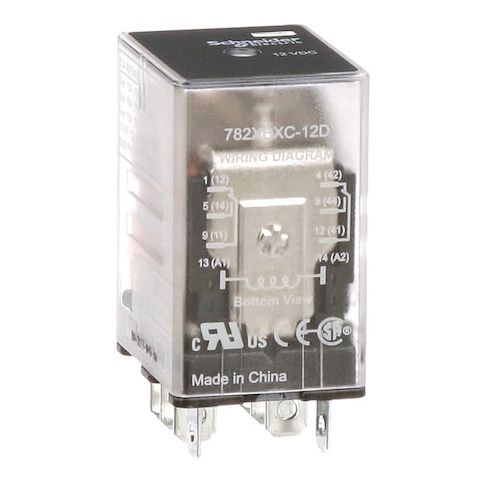

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector MPN:782XBXC-12D
Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable solution for a wide range of applications. Its DPDT contact form and 15A current rating make it ideal for use in control panels, machine automation, and industrial control systems. The relay's faston connector and mechanical flag status indicator simplify installation and monitoring. Suitable for use in 120-277V AC and 28V DC applications, this relay can handle up to 1/2 HP at 120V AC and 1 HP at 240V AC. Its compact design and fast shipping make it an excellent choice for projects requiring a reliable and efficient relay solution.
Top product features:
- Square base shape provides a compact design for easy installation.
- DPDT contact form allows for double-pole double-throw switching capability.
- Faston terminal connection provides a secure and easy-to-use electrical connection method.
Top product applications:
- Industrial Automation Systems
- Automotive Diagnostic Equipment
- Medical Device Manufacturing
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 27, 2026 7:12am UTC
Category: Industrial Electrical Controls and Automation
