Terminal Block, Screw-On, Gray MPN:NSYTRV42SC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G321682029

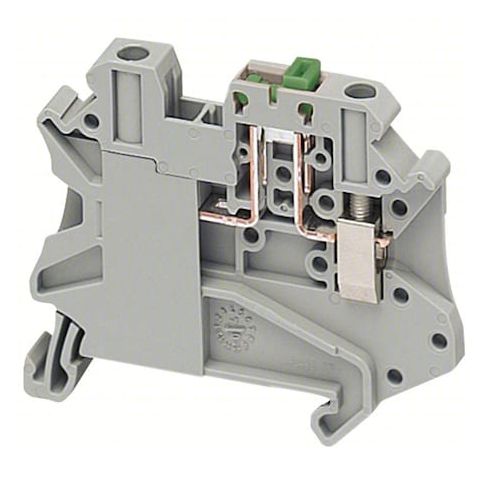

Terminal Block, Screw-On, Gray
This Schneider Terminal Block is a reliable and efficient solution for circuit protection and connection needs. With a screw-on connection type and a maximum current rating of 16A, it can handle a variety of applications, from industrial control systems to commercial electrical installations. Its compact design and DIN rail mounting type make it ideal for space-constrained areas. The terminal block is also CSA, EU RoHS, and UL compliant, ensuring safety and regulatory compliance. Suitable for use with copper conductors, it is a versatile and dependable choice for electrical engineers and technicians working on projects requiring high-quality circuit protection and connection solutions.
Top product features:
- Screw-on connection type allows for secure attachment and detachment of wires.
- Housing is designed for DIN rail mounting for easy installation and organization.
- Circuit protection is not included, allowing for flexibility in electrical design and configuration.
Top product applications:
- Industrial control panel assembly
- Electrical distribution and circuit protection systems
- Automated manufacturing equipment
Terminal Block, Circuit Protection Type None, Connection Type Screw-On, Current 16 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Gray, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.9 in, Overall Length 2.3 in, Overall Width 0.2 in, Standards CSA, EU RoHS Directive Compliant, REACH Regulation, UL, Terminal Block Type Blade Disconnect
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 50
- Unit of Measure: EA
- Package Length: 12.76
- Package Width: 3.27
- Package Height: 2.20
- Package Weight: 1.45
Product info last updated on February 17, 2026 8:57am UTC
Category: Electrical Connectors
