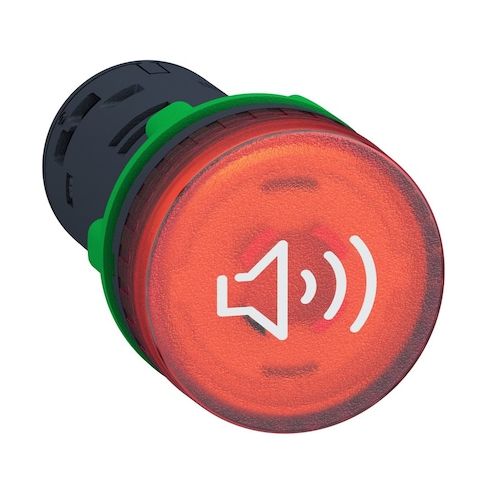

Buzzer, Buzzer, 240V AC, 90 dB, Plastic, Red MPN:XB5KS2M4

• SCHNEIDER ELECTRIC XB5KS2M4 is a 240V AC buzzer for audible signaling in panel and control applications. It delivers up to 90 dB at 1 m and is configured for flush mounting with a plastic housing, red lens, and screw terminal connection. This buzzer accessory is intended for custom assembly and supports continuous or intermittent signaling with an adjustable acoustic level.

  Key Features:

  • Audible alarm type: Buzzer with tone sound style for audible signaling.
  • Voltage and power: 240V AC operation, 35 mA current draw, 5 W wattage.
  • Sound output: 90 dB maximum at 1 m.
  • Signal pattern: Continuous or intermittent tone pattern.
  • Light indication: LED light source with flashing and steady operating modes
  • 60 flashes per minute.
  • Mounting and wiring: Flush mount design with screw terminal connection and screw clamp terminals included.
  • Construction: Plastic housing with red lens
  • housing colors listed as black and green.
  • Size: 2.17 in depth, 1.14 in height, 1.14 in width, and 0.87 in diameter.
  • Ratings: Multiple IK, IP, and NEMA ratings.
  • Temperature range: -40 Degrees C to 70 Degrees C / -40 Degrees F to 158 Degrees F.
  • Standards: Meets multiple CSA, EN, IEC, JIS, and UL standards.
