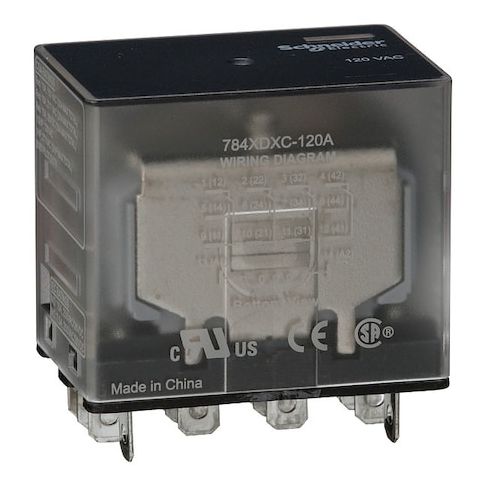

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector MPN:784XDXC-120A
Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector
The Schneider General Purpose Relay is a reliable and efficient solution for a wide range of applications, including industrial control systems, machinery, and automation. With a 15A current rating and 14-pin Faston connector, this relay can handle high-power loads with ease. Its 4PDT contact form and mechanical flag status indicator ensure precise control and monitoring. Suitable for use in environments with 120V AC and 250V DC, this relay is ideal for applications such as motor control, lighting systems, and HVAC systems. Its compact design and fast shipping make it an excellent choice for industries requiring quick and reliable solutions.
Top product features:
- Square base shape for easy mounting and installation
- Four-pole double-throw (4PDT) contact form for reliable switching and control
- Faston terminal for secure and easy electrical connections
Top product applications:
- Industrial Automation Systems
- Machine Control Panels
- Automated Manufacturing Lines
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 2.50
- Package Weight: 0.17
