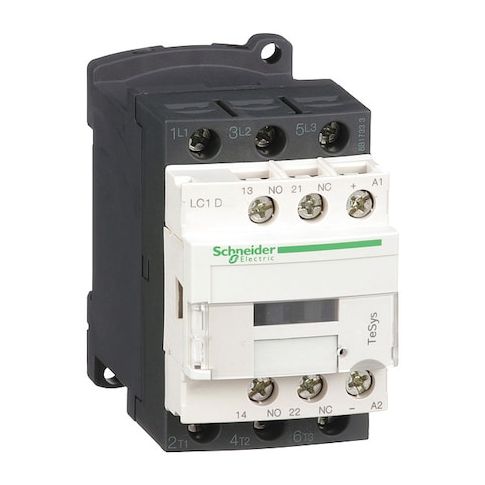

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D126BD
Free Shipping
In Stock
The Schneider Electric LC1D IEC Magnetic Contactor is a reliable and efficient device for motor control and resistive load applications. With its 3-pole, non-reversing design and 24V DC coil, it provides a high level of control and safety. The 1NC/1NO auxiliary contact configuration allows for flexible control of auxiliary circuits. Suitable for use in a variety of applications, including industrial automation, building management, and renewable energy systems. The device's compact design and screw terminal connections make it easy to integrate into existing systems, while its IP20 rating and UL 94 V1 classification ensure reliable performance in harsh environments.
Top product features:
- 3-pole design allows for three separate control circuits
- Non-reversing capability ensures the contactor will only operate in one direction
- 1NC/1NO auxiliary contact configuration provides a normally closed and normally open contact for control and monitoring
Top product applications:
- Motor Control
- Resistive Load
- Standard mounting methods (plate or rail)
IEC Magnetic Contactor from Schneider Electric. It is a 3-pole, non-reversing device with a 24 V DC coil and auxiliary contacts in the 1NC/1NO configuration. Suitable for use in motor control and resistive load applications within specified parameters. Compatible with standard mounting methods (plate or rail). Equipped with screw terminals / compatible with screw terminal connections.
- Series: LC1D
- Item: IEC Magnetic Contactor
- - Poles: 3
- - Coil voltage: 24 V DC
- - Auxiliary contact form: 1NC/1NO
- - Reversing capability: Non-Reversing
- - Application: Motor Control, Resistive Load
- - Mounting: Compatible with standard mounting methods (plate or rail)
- - Electrical connection: Equipped with screw terminals / compatible with screw terminal connections
- - Dimensions: 45 mm W x 77 mm H x 95 mm D
- - Weight: 0.485 kg
- - IP rating: IP20
- - Rated voltage: 690 V AC, 300 V DC
- - Fire rating: UL 94 V1 classification
- - Non-overlap time: Has a specified non-overlap time of approximately 1.5 ms under test conditions
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508
- - Shock resistance: 15 G (Closed), 10 G (Open)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 57 days
- Minimum Order Quantity: 16
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.18
