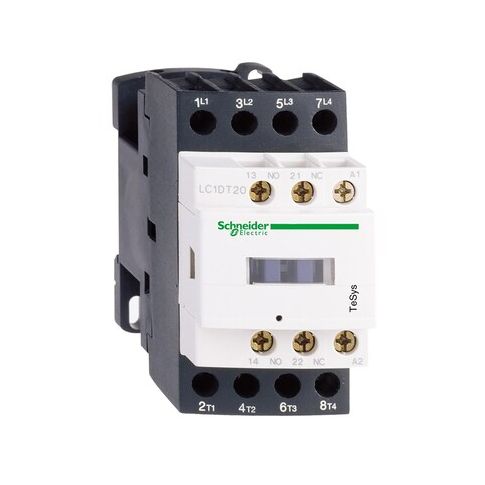

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT20GD

• The Schneider Electric IEC Magnetic Contactor LC1D is a 4-pole, non-reversing IEC magnetic contactor with a 125 V DC coil and screw clamp terminals. It features 1NC/1NO auxiliary contacts (mechanically linked) and is rated for operation with resistive loads within specified parameters. The unit is part of the TeSys Deca LC1D family and includes a built-in bidirectional peak limiting diode suppressor along with a protective cover. It is constructed with materials compliant with industry standards and rated IP20 for front-face protection in typical electrical control environments.

  Key features

• - Coil and contacts: 125 V DC coil
• 4 poles
• 4 NO main contacts
• 1NC/1NO auxiliary contacts (mechanically linked)
• - Reversing: Non-Reversing
• - Electrical ratings: Rated voltage 690 V AC / 300 V DC
• Rated insulation voltage 600/690 V
• Rated making capacity 140 A (AC Signalling), 250 A (DC Signalling), 250 A @ 440 V (Power Circuit)
• Rated breaking capacity 250 A @ 440 V (Power Circuit)
• - Protection and enclosure: IP20 front face
• Includes protective cover
• PVC Free
• Mercury Free
• Pollution Degree 3
• - Connection and mounting: Screw clamp terminals
• Mounts on Plate, Rail
• - Size and weight: Height 85 mm
• Width 45 mm
• Depth 99 mm
• Net weight 0.365 kg
• - Series and standards: Series LC1D
• Range TeSys
• Range of product TeSys Deca
• Standards CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 508
• IEC 60335-1
• - Protective and safety features: Built-in bidirectional peak limiting diode suppressor
• Protective treatment THIEC 60068-2-30
• Overvoltage category III
• Impulse withstand voltage 6 kV
• - Auxiliary and control details: Control circuit type DC standard
• Control terminals are screw clamps
• Associated fuse ratings: 10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
