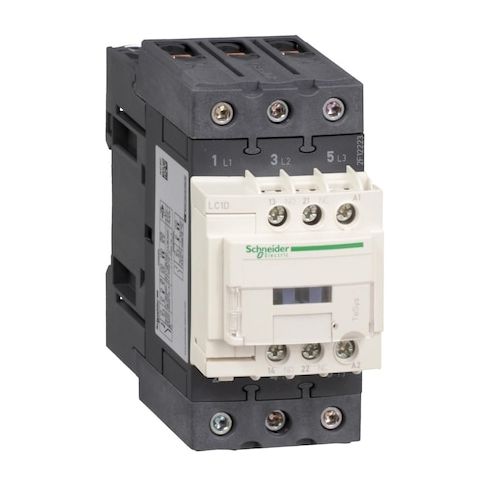

IEC Magnetic Contactor, 1NC/1NO, 600V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AX7
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient solution for controlling 3-phase motors in various industrial applications. With its 1NC/1NO auxiliary contact and non-reversing design, it ensures precise control and minimizes downtime. The contactor's 600V AC coil voltage and 3-pole configuration make it suitable for a wide range of applications, including HVAC systems, conveyor belts, and pumps. Its compact design and IP20 protection make it easy to integrate into existing systems, while its high-making capacity and mechanical durability ensure reliable operation in demanding environments. Ideal for use in factories, warehouses, and other industrial settings.
Top product features:
- The item features a 1NC/1NO auxiliary contact.
- It has a rated making capacity of 800 A @ 440 V in the power circuit.
- It operates at an ambient range of -40 to 60°C with optional derating up to 70°C.
Top product applications:
- Industrial Automation
- Motor Control Centers
- Power Distribution Units
The item is an IEC Magnetic Contactor (non-reversing) featuring 3 poles and a 1NC/1NO auxiliary contact.
- - Rated for operation within specified load types
- - Coil voltage: 600 V AC
- - Control is via screw clamp terminals, while power connections use EverLink BTR screw connectors
- a protective cover is included
- - Protection: Conforms to IP20 ingress protection standards (not guarantees safety)
- protective cover included
- - Mounting: Plate and Rail
- - Terminations: Control Circuit: Screw Clamp
- Power Circuit: EverLink BTR screw connectors
- - Fuse protection: 10 A (Signalling Circuit)
- 80 A (Power Circuit Type 1)
- 80 A (Power Circuit Type 2)
- - Rated making capacity: 800 A @ 440 V (Power Circuit)
- - Rated voltage: 690 V AC, 300 V DC
- - HP ratings (3-phase): up to 30 hp at 575/600 V
- - Ambient range: -40 to 60°C (60-70°C with derating)
- - Operating speed: 3600 cyc/h
- - Mechanical durability: 6 Mcycles
- - Reversing capability: Non-Reversing
- - Range: belongs to the TeSys Deca product line
- - Net weight: approx. 0.85 kg
- dimensions provided are approximate specifications (122 mm H x 120 mm D x 55 mm W)
- - Impulse withstand: 6 kV
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.08
