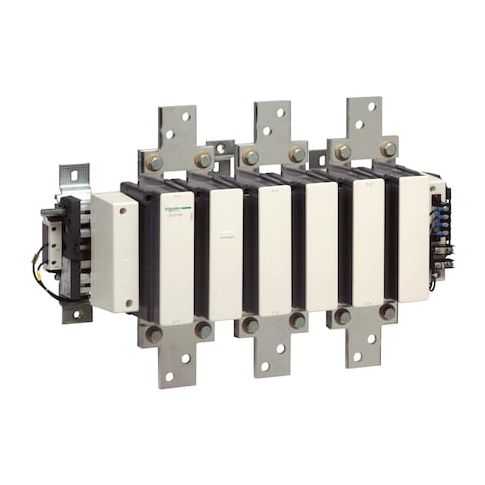

IEC Magnetic Contactor, 3NO, 110V AC, 3 P, Screw Clamp MPN:LC1F780F7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, coil-operated switching device with 3 normally open auxiliary contacts (3NO). It uses a 110 V AC coil and is configured for control of motor and resistive loads. This unit is part of the TeSys F range (LC1F series) and is compatible with screw-clamp control terminals and power circuit bars with bolted connections.

  - Coil voltage: 110 V AC

• - Poles and auxiliary contacts: 3P, 3NO
• - Control/power terminals: Control circuit screw clamp terminals
• Power circuit bar, bolted connection
• - Rated operational voltage: rated for operation within the specified voltage ranges
• - Rated insulation voltage: 1000/1500 V
• - Short-time withstand current (Icw): short-time withstand current ratings are provided according to testing standards
• - Full-load current: rated for the specified full-load currents under standard conditions
• - Ambient & storage temperatures: Operation 23 to 131 °F (−5 to 55 °C)
• Storage −76 to 176 °F (−60 to 80 °C)
• Permissible ambient −40 to 158 °F (−40 to 70 °C)
• - IP rating: IP20
• - Mechanical durability: 5 Mcycles
• - Weight: 39.5 kg
• - Dimensions: Width 27.64 in (702 mm)
• Height 17.09 in (434 mm)
• Depth 10.04 in (255 mm)
• - Motor power ratings: 450 kW at 1000 V AC (AC-3)
• 400 kW at 380–400 V
• 425 kW at 415–440 V
• 450 kW at 500 V
• 475 kW at 660–690 V
• 220 kW at 220–230 V
• 110 kW at 400 V (AC-4)
• - Series/range: LC1F (TeSys)
• Range: TeSys F
• - Utilisation categories: conforms to utilisation categories as defined by relevant standards
• - Impulse withstand voltage: 8 kV
• - Inrush/hold-in power: Inrush 2100 VA
• Hold-in 50 VA
• - Certifications: UL
• CSA
• RINA
• ABS
• LROS
• DNV
• BV
• UKCA
• CB
• RMRoS
• - Protective treatment and materials: TH protective treatment
• Mercury free
