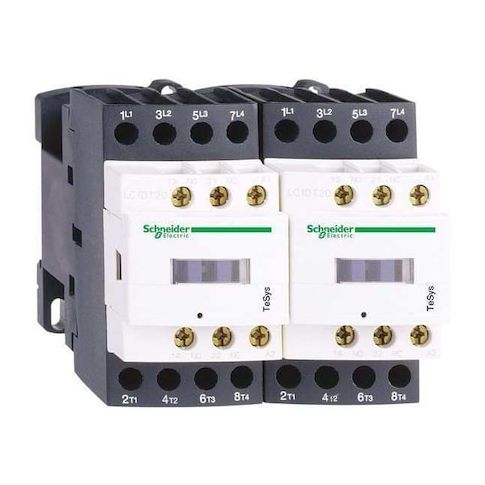

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Reversing, Screw Clamp MPN:LC2DT25BD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for controlling power circuits in various applications. Its 4-pole, reversing design allows for flexible control and operation in harsh environments. The 24V DC coil ensures smooth and consistent performance, while the built-in peak limiting diode suppressor protects against voltage spikes. Suitable for use in industrial automation, manufacturing, and commercial settings, this contactor is ideal for applications requiring high reliability and durability, such as in HVAC systems, conveyor belts, and machinery control. Its compact design and preassembled connections make it easy to integrate into existing systems.
Top product features:
- Reversing action allows for bidirectional control of power circuits
- Built-in bidirectional peak limiting diode suppressor protects the coil from voltage spikes
- 4 poles with 4 NO main contacts and 1NC/1NO auxiliary contacts enable reliable and flexible circuit control
Top product applications:
- Electric Motor Control
- Industrial Automation Systems
- Power Distribution Systems
Schneider Electric IEC Magnetic Contactor LC2D (TeSys Deca): a 4-pole, reversing, IEC magnetic contactor with a 24 V DC coil. It is an electrically operated switching device for controlling power circuits per IEC standards, using an electromagnetic coil to open or close contacts. This unit includes a 1NC/1NO auxiliary contact, is preassembled with prewired power connections, and includes a protective cover conforming to IP20 standards. Rated for operation with resistive loads within specified parameters and features a front-face IP20 rating, with PVC-free construction and treated in accordance with IEC 60068-2-30 standards. Rated for ambient temperatures from -40 to 60°C, with derating above 60°C as specified
- storage -60 to 80°C.
Key features
- - Action: Reversing
- - Coil voltage: 24 V DC
- Coil technology: Built-in bidirectional peak limiting diode suppressor
- - Poles and contacts: 4 poles
- 4 NO main contacts
- Auxiliary contacts: 1NC/1NO
- Auxiliary contacts mechanically linked 1 NO + 1 NC
- - Electrical connections: Screw clamp terminals
- Device presentation: preassembled with prewired power connections
- - Protection and construction: Includes protective cover conforming to IP20 standards
- IP20 front face
- Pvc Free
- Treated in accordance with IEC 60068-2-30 standards
- Pollution Degree: 3
- - Ratings and capabilities: Rated making capacity 250 A @ 440 V (Power Circuit)
- Rated insulation voltage 600/690 V
- Impedance 2.5 mΩ
- Impulse withstand voltage 6 kV
- Rated short-time withstand currents (multiple values) up to 210 A (Power Circuit) and 140 A (Signalling Circuit)
- - Standards and labeling: Range TeSys/TeSys Deca
- Series LC2D
- Standards include IEC 60947-4-1, IEC 60947-5-1, UL/CSA/EN equivalents
- - Physical characteristics: Width 90 mm
- Height 85 mm
- Depth 90 mm
- Net weight 0.73 kg
- Mounting: Plate, Rail
- - Load and voltage: Suitable for use with resistive loads within rated specifications
- Rated making capacity up to 250 A @ 440 V (Power Circuit)
- Rated operational voltage up to 690 V AC / 300 V DC
- - Operating conditions: Rated for ambient temperatures from -40 to 60°C, with derating above 60°C as specified
- storage -60 to 80°C
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.63
