Push Button Operator, 30 mm, 1NO, Green MPN:9001KR3GH5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3116075

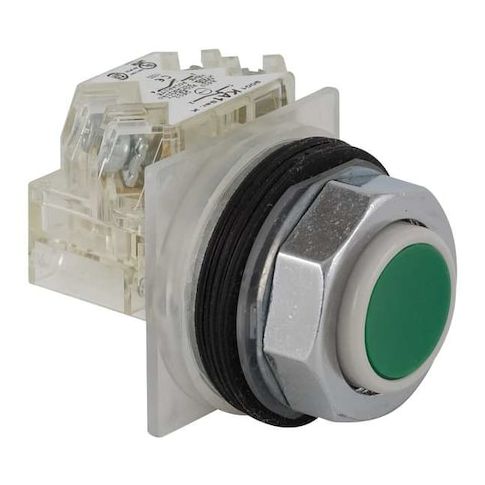

Push Button Operator, 30 mm, 1NO, Green
The Schneider 30mm Push Button Operator is a reliable and efficient solution for a variety of applications. With its momentary action and extended button type, it's perfect for use in control panels, switchboards, and other electrical systems. The operator's metal head and chrome-plated bezel ensure durability and resistance to wear and tear. Its 10A @ 600V AC rating makes it suitable for a range of applications, from industrial machinery to commercial equipment. The operator's compact size and IP66 rating also make it ideal for use in harsh environments, such as outdoors or in areas with high humidity.
Top product features:
- Momentary action design allows for repeated operation without locking in a position.
- Extended button type provides increased accessibility for users with disabilities.
- 1NO contact form enables a single normally open contact to be activated by the operator.
Top product applications:
- Control Panel
- Machine Automation
- Industrial Equipment Control
Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp, Material Metal
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 4.40
- Package Height: 3.30
- Package Weight: 0.41
Product info last updated on February 3, 2026 2:54am UTC
Category: Industrial Electrical Controls and Automation
