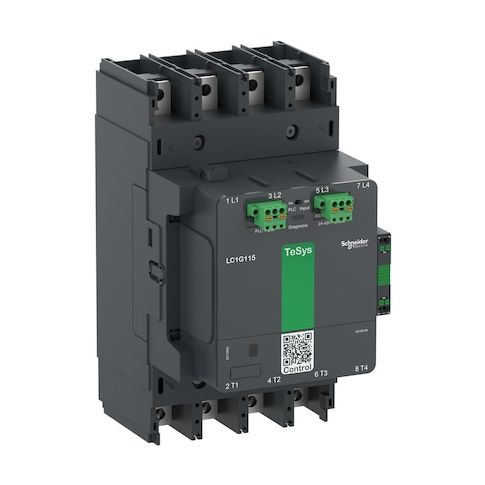

IEC Magnetic Contactor, 1NC/1NO, 24V-48V AC/DC, 4 P, Spring Type MPN:LC1G1854BEEA

• The IEC Magnetic Contactor is a four-pole, electrically operated switching device (TeSys Giga series) with 1NC/1NO auxiliary contacts. It uses a 24–48 V coil (AC/DC) and features plate mounting with spring-type terminals. The unit includes two auxiliary contacts, has no embedded surge suppressor, and is rated for operation within the specified frequency range. It is designed to operate at voltages up to 1000 V AC within specified parameters. IP20 protection is offered and rated for operation within the specified temperature range. Mechanical durability has been tested to withstand high cycle counts as per manufacturer specifications.

  - Item: IEC Magnetic Contactor

• Series: TeSys Giga
• Poles: 4
• Auxiliary Contacts: 2 (1NC/1NO)
• Coil Voltage: 24–48 V AC/DC
• Terminal Connection: Spring Type
• Mounting: Plate
• Phase: Single
• Frequency: 50/60 Hz
• - Embedded Surge Suppressor: No
• Maximum Voltage Rating: 1000 V AC within specified parameters
• IP Rating: IP20
• Dimensions (L×W×H): 7.6 in × 5.63 in × 10.04 in
• - Operating Temperature: rated for operation within the specified temperature range
• Mechanical Durability: has been tested to withstand high cycle counts as per manufacturer specifications
• - Current Ratings: Full Load Amps-Inductive 250 A
• Full Load Amps-Resistive 305 A
• Full Load Current-Inductive 185 A
• Full Load Current-Resistive 305 A
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
