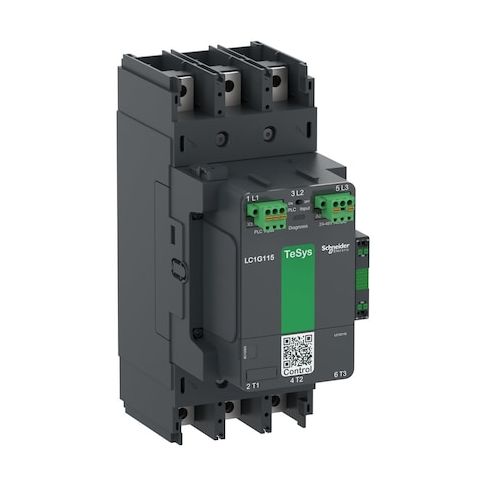

The IEC Magnetic Contactor is a 3-pole, electrically operated switch rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close its contacts, suitable for controlling motors and industrial loads within specified parameters. This unit features a 1NC/1NO auxiliary contact arrangement and spring-type terminals, and follows IEC-style design for modular control panels with standardized sizing and interchangeability.
- Auxiliary contact form: 1NC/1NO
- Includes auxiliary contacts: Yes
- Coil voltage: 200V-500V AC/DC
- Contactor style: IEC
- Embedded surge suppressor: No
- Frequency: 50/60 Hz
- Full Load Amps - Inductive: rated for currents up to 250 A under inductive load conditions
- Full Load Amps - Resistive: rated for currents up to 305 A under resistive load conditions
- Full Load Current - Inductive: rated for current up to 185 A under inductive load conditions
- Full Load Current - Resistive: rated for current up to 305 A under resistive load conditions
- IP rating: IP20
- Item: IEC Magnetic Contactor
- Maximum operating temperature: has a maximum ambient operating temperature of approximately 60°C (140°F) within specified limits
- Maximum voltage rating: rated for voltages up to 1000V AC within specified parameters
- Mechanical operating durability: 8000000
- Minimum operating temperature: -13 Degrees F
- Mounting style: Plate
- Number of auxiliary contacts: 2
- Number of poles: 3
- Overall depth: 7.6 in
- Overall height: 10.04 in
- Overall width: 4.25 in
- Phase: Single
- Series: TeSys Giga
- Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
