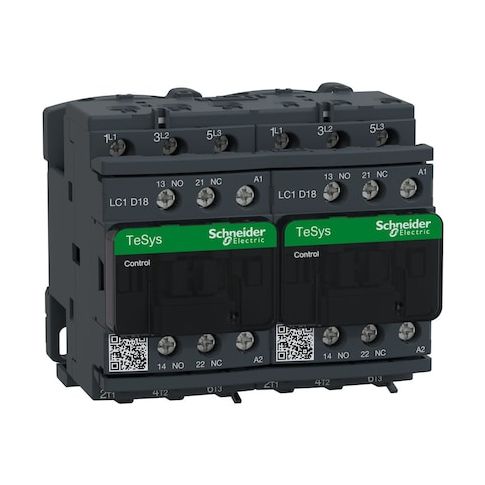

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Reversing, Screw Clamp MPN:LC2D18E7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile and reliable solution for power circuit switching in a variety of applications. Designed for use in standard IEC control panel configurations, this 3-pole, reversing contactor is ideal for industrial control systems, machinery, and equipment. Its electromagnetic coil and screw clamp terminals provide efficient and secure operation, while the included auxiliary contacts offer added functionality. With a wide range of horsepower ratings and compatibility with various voltages, this contactor is suitable for use in a range of industries, including manufacturing, oil and gas, and food processing.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole, reversing capability that allows for switching power circuits in both directions.
- It features screw clamp terminals for secure and easy connections.
- The contactor includes auxiliary contacts (1NC/1NO) for additional control and monitoring capabilities.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing contactor rated for switching power circuits within the specified IEC standards. It uses an electromagnetic coil to operate the main contacts and includes auxiliary contacts (1NC/1NO) as specified by manufacturer documentation. It features screw clamp terminals and mounting options for DIN rail or plate installation. Its coil is rated at 48V AC. It is compatible with standard IEC control panel configurations within its rated voltage and phase specifications.
- Coil Voltage: 48V AC
- - Auxiliary Contacts: 1NC/1NO (2 total)
- - Number of Poles: 3
- - Reversing Capability: Capable of reversing operation as per manufacturer specifications
- - Contactor Style: IEC
- - Terminal Connection Type: Screw Clamp
- - Maximum Voltage Rating: 690V AC
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Full Load Amps: Inductive 18 A
- Resistive 32 A
- - Electrical Operating Durability: 1,000,000 (AC-1), 1,650,000 (AC-3)
- - Mechanical Operating Durability: 15,000,000
- - Temperature Range: -40°F to 140°F
- - Mounting Style: DIN Rail, Plate
- - Phase: Three
- - Series: TeSys Deca
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- - Includes Auxiliary Contacts: Yes
- - Horsepower (various voltages): 120V AC 1 hp
- 240V AC 3 hp
- 208V AC 5 hp
- 240V AC 5 hp
- 480V AC 10 hp
- 600V AC 15 hp
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.59
- Package Width: 4.49
- Package Height: 3.74
- Package Weight: 1.80
