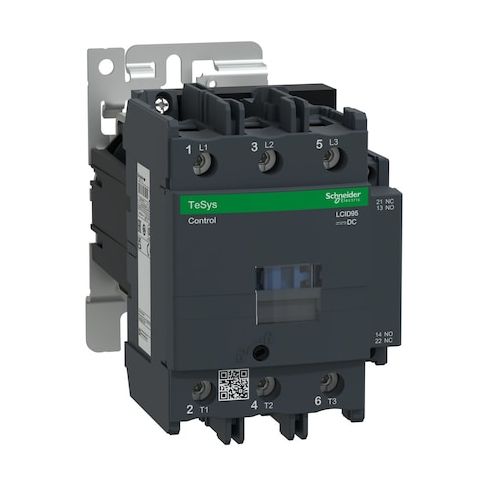

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D95BD
Free Shipping
In Stock
The Schneider TeSys Deca IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in a variety of applications. Designed for use with motors up to 60 horsepower, this three-pole, non-reversing device is perfect for industrial control systems, automation, and power distribution. With its 24V DC coil and screw clamp terminals, it's easy to integrate into your existing infrastructure. The TeSys Deca series offers high reliability, long lifespan, and compatibility with a range of voltages and currents, making it an ideal choice for applications in manufacturing, process control, and more.
Top product features:
- Three-pole operation allows for the control of three separate circuits with a single device.
- The non-reversing design ensures that the contactor will only switch power in one direction, preventing accidental or unintended switching.
- The 1NC/1NO auxiliary contacts provide a reliable and consistent signal for controlling other devices or initiating actions.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Systems
The IEC Magnetic Contactor is a three-pole, non-reversing device with a 24 V DC coil used to switch power circuits. It includes two auxiliary contacts configured as 1NC/1NO and uses screw clamp terminals. It is part of the TeSys Deca series and rated for operation within the specified voltage range of up to 690 V AC.
- Coil voltage: 24V DC
- - Poles: 3
- - Auxiliary contacts: 2 (1NC/1NO)
- - Reversing capability: Non-Reversing
- - Terminal connections: Screw Clamp
- - Mounting: DIN Rail, Plate
- - Rated for operation within the specified voltage range of up to 690 V AC
- - IP rating: IP20
- - Mechanical lifespan: approximately 10 million cycles (subject to normal use)
- - Electrical endurance ratings under specified test conditions
- - Rated for continuous operation at these current levels within specified conditions
- - Designed for use with circuits drawing these currents within the specified parameters
- - Compatible with motors up to the indicated horsepower ratings at specified voltages: 120V AC 7.5 hp
- 240V AC 15 hp
- 208V/240V AC 30 hp
- 480V/600V AC 60 hp
- - Series: TeSys Deca
- - Standards: EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.54
- Package Width: 6.42
- Package Height: 4.33
- Package Weight: 5.67
