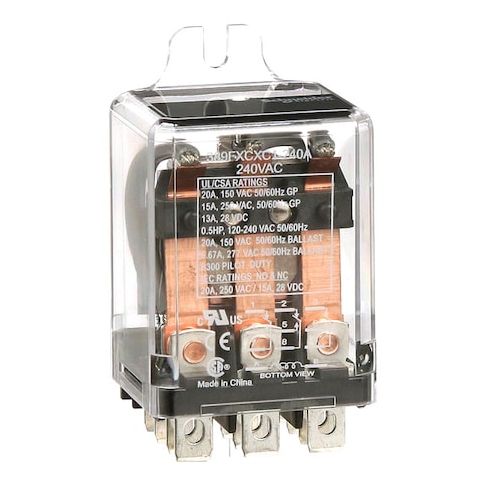

Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect MPN:389FXCXC1-240A
Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect
This Schneider Enclosed Power Relay is a reliable and efficient solution for a wide range of applications, including industrial control systems, machinery, and equipment. Its octal base shape and flange mounting style provide a secure and compact design, while the 20A current rating and 11-pin configuration enable versatile connections. The relay's quick-connect feature simplifies installation and maintenance, while the mechanical flag status indicator provides easy monitoring. Suitable for use in environments with 240V AC power, this relay is ideal for applications such as HVAC systems, conveyor systems, and robotics, where high reliability and efficiency are critical.
Top product features:
- Enclosed design protects the relay's internal components from environmental factors
- Quick Connect electrical connection allows for easy installation and reduced wiring time
- 3PDT contact form enables the relay to control three separate circuits with a single coil
Top product applications:
- Automotive Electronics
- Industrial Automation Systems
- Medical Equipment Control Panels
Enclosed Power Relay, Base Shape Octal, Coil Voltage 240V AC, Contact Form 3PDT, Current Rating 20 A, Electrical Connection Quick-Connect, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Flange, Body Depth 1.07 in, Body Height 1.54 in, Body Width 0.83 in, Coil Resistance 7,200 ohm, Contact Material Silver Alloy
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.60
- Package Height: 2.00
- Package Weight: 0.20
Product info last updated on March 7, 2026 11:17pm UTC
Category: Industrial Electrical Controls and Automation
