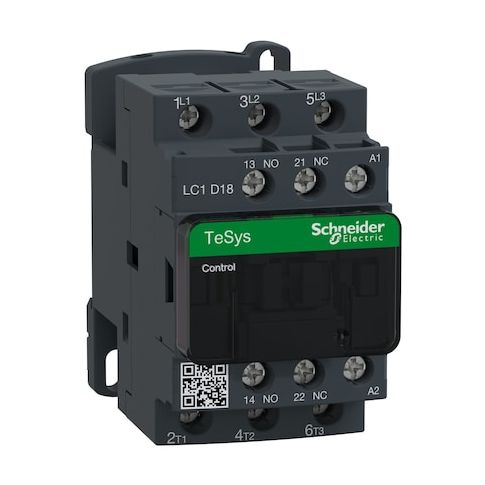

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D18G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient industrial switching device ideal for motor control and resistive load applications. With a 120V AC coil and three-pole non-reversing design, it provides precise control and flexibility in various settings. Its robust construction ensures high durability with 1 million electrical cycles and 15 million mechanical cycles, making it a long-lasting investment. Suitable for use in harsh environments, the contactor features a protective cover and screw clamp terminals for easy installation and maintenance. Its compact design allows for DIN Rail and plate mounting, making it a versatile solution for industrial applications.
Top product features:
- The product has a three-pole, non-reversing design suitable for motor control and resistive load applications.
- It includes two auxiliary contacts, one normally open and one normally closed, for additional control functionality.
- The product uses screw clamp terminals for easy and secure connections.
Top product applications:
- Motor control applications
- Resistive load applications
- Industrial switching applications
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a three-pole, non-reversing industrial switching device in the TeSys Deca series. The unit is rated for operation with a 120 V AC coil and includes two auxiliary contacts (1 NO / 1 NC). The unit uses screw clamp terminals, includes a protective cover, and is designed without an enclosure (IP20). Designed for use in motor control and resistive load applications, it has a maximum voltage rating of 690 V AC / 300 V DC.
Key features
- - Coil voltage: 120 V AC
- - Poles/phase: 3 (Three-phase)
- - Reversing: Non-Reversing
- - Auxiliary contacts: 2 total (1 NO, 1 NC)
- - Main contact rating: 32 A resistive, 18 A inductive
- - Maximum voltage rating: 690 V AC / 300 V DC
- - Electrical/mechanical durability: 1,000,000 and 1,650,000 cycles (electrical)
- 15 Mcycles (mechanical)
- - Enclosure and protection: No enclosure
- IP20
- - Connection and mounting: Screw clamp terminals
- DIN Rail and Plate mounting
- - Weight and dimensions: 0.33 kg
- width 1.77 in, height 3.03 in, depth 3.39 in
- - Series: TeSys Deca
- - Frequency: 50/60 Hz
- - Maximum operating temperature: 140°F
- - Additional: Includes protective cover
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.70
- Package Height: 2.30
- Package Weight: 0.80
