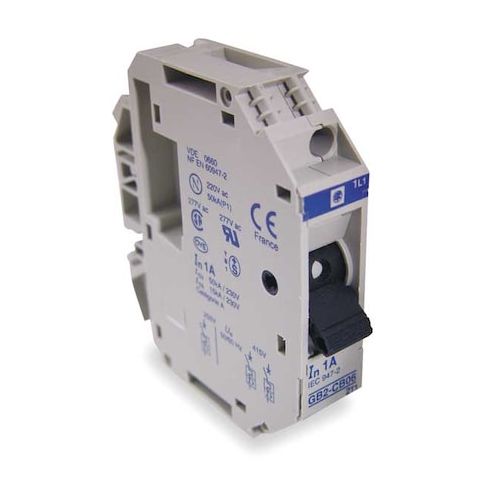

Motor Circuit Breaker, TESYS Series, 1A, 1 Pole, 250/277V AC, 50kA at 240V AC MPN:GB2CB06
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3036914
Motor Circuit Breaker, TESYS Series, 1A, 1 Pole, 250/277V AC, 50kA at 240V AC
Protect your electrical circuits with the TESYS Series Motor Circuit Breaker from Schneider. This reliable 1A, 1-pole breaker is designed for use in 250/277V AC applications and can withstand 50kA at 240V AC. Its compact gray housing is DIN-mountable and suitable for use with 16 AWG to 12 AWG wires. The TESYS Series breaker meets rigorous standards for safety and performance, including EN/IEC 60947-1, EN/IEC 60947-2, CSA C22.2 No 235, and UL 1077. Ideal for industrial and commercial applications, this circuit breaker provides peace of mind for electrical engineers and facility managers.
Top product features:
- Protects against overcurrent conditions, automatically interrupting the circuit to prevent damage or fire
- Provides 50kA of short-circuit current protection at 240V AC
- Ensures safe and reliable operation with a 1A current rating and 300V AC maximum voltage
Top product applications:
- Industrial Control Panels
- Electrical Service Entrance Panels
- Commercial Lighting Systems
Circuit Protector, Circuit Protection Type Circuit Breaker, Connection Type Clips, Current 1 A, For Minimum Wire Size 16 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 300 V AC, Mounting Type DIN, Number of Poles 1, Number of Tiers 1, For Conductor Type Not Applicable, Overall Depth 3.3 in, Overall Length 3 in, Overall Width 1.2 in, Standards EN/IEC 60947-1EN/IEC 60947-2CSA C22.2 No 235UL 1077
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 0.60
- Package Weight: 0.11
Product info last updated on January 13, 2026 1:06pm UTC
Category: Circuit Protection
