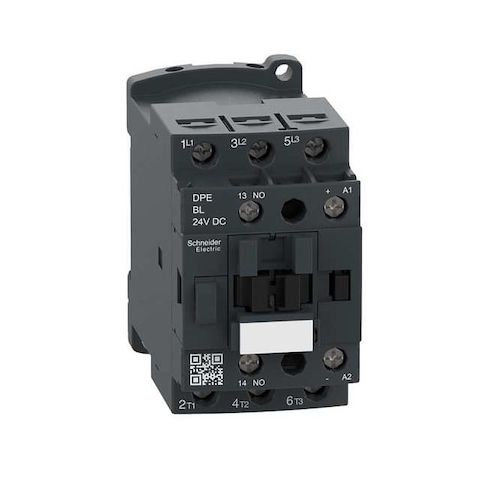

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:DPE09BL
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. It features a 3-pole, non-reversing design with a 24V DC coil and 1 normally open auxiliary contact, making it ideal for use in control panels with standard dimensions. With a TeSys Easy frame and screw clamp terminals, this contactor is easy to install and use. It's rated for operation up to 690V AC/300V DC and features a high making capacity, making it suitable for a wide range of industrial and commercial applications, including HVAC, pumps, and conveyors.
Top product features:
- IEC Magnetic Contactor has 3 normally open main contacts for controlling power circuits.
- It features a non-reversing operation for ensuring consistent and reliable switching.
- The contactor includes 1 normally open auxiliary contact for additional control and monitoring capabilities.
Top product applications:
- Motor control applications
- Resistive load applications
- Control panels with standard dimensions
Schneider Electric IEC Magnetic Contactor, 3-pole, 24 V DC coil, non-reversing, 1 normally open auxiliary contact, mounted with screw clamp terminals. This IEC-style magnetic contactor is rated for operation within the specified voltage and current ranges in motor control and resistive load applications. It features a TeSys Easy frame and is suitable for installation in control panels with standard dimensions
- complies with relevant standards.
- Poles: 3
- Main Contacts: 3 NO
- Auxiliary Contacts: 1 NO
- Coil Voltage: 24 V DC
- Reversing: Non-Reversing
- - Frame: TeSys Easy
- Control: 50/60 Hz
- Electrical Connection: Screw Clamp Terminals
- - Mounting: DIN Rail, Plate
- Mounts On: Plate, Rail
- Enclosure: IP20
- NEMA Rating: 3R
- 4
- - Maximum Voltage: rated for operation up to 690 V AC / 300 V DC within specified conditions
- - Rated Voltage: rated for use at voltages up to these levels under specified conditions
- - Rated Making Capacity: 250 A @ 440 V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling) → rated making capacity at specified voltages within the product's electrical ratings
- - Max. Operating Watts: 2.2 kW at 220–230 V AC
- 4 kW at 380–400 V AC
- 4 kW at 415–440 V AC
- 5.5 kW at 500–690 V AC → capable of operating within the specified wattage ranges when used according to manufacturer instructions
- - Full Load Amps: Inductive 9 A
- Resistive 9 A → rated for continuous operation at these current levels under normal conditions
- - Frequency: 50/60 Hz
- Impedance: 2.5 mOhm
- - Impulse Withstand Voltage: 6 kV → withstands impulse voltages up to this level as per testing standards
- does not imply safety guarantee during actual use
- Includes Auxiliary Contacts: Yes
- Non-Overlap Time: 1.5 ms
- - Operating Times (Closing/Opening): 65.45–88.55 ms / 20–30 ms → typical switching times based on design specifications
- actual performance may vary depending on application conditions
- - Shock Resistance: 15 G (Closed)
- 10 G (Open)
- Vibration Resistance: 4 G (Closed)
- 2 G (Open) → tested resistance levels
- does not imply immunity from damage or failure outside tested parameters
- - Thermal/Temperature: Max Operating Temperature 140 °F
- Max Temperature 850 °C → rated for operation within these temperature ranges as per specifications
- does not guarantee performance outside these limits
- - Rated Insulation Volts: 600/690 V
- Special Features: Overvoltage Category III
- Min Switching Voltage 17 V (Signalling Circuit)
- Insulation Resistance 10 MΩ (Signalling Circuit) → conforms to insulation ratings and categories defined by standards but does not guarantee protection against all electrical faults or failures
- - Electrical Durability: 1,000,000 cycles (overall)
- 0.6 Mcycles (20 A, AC-1, <440 V)
- 1 Mcycles (9 A, AC-3, <440 V)
- - Environments/Standards: Mercury Free
- Toxic Heavy Metal Free
- Pollution Degree 3
- Standards: CSA, EN 60947-4-1, EN 60947-5-1, UL Listed, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14
- - Weight: 0.32 kg
- Depth: 3.39 in
- Height: 3.03 in
- Width: 1.77 in
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 1.13
