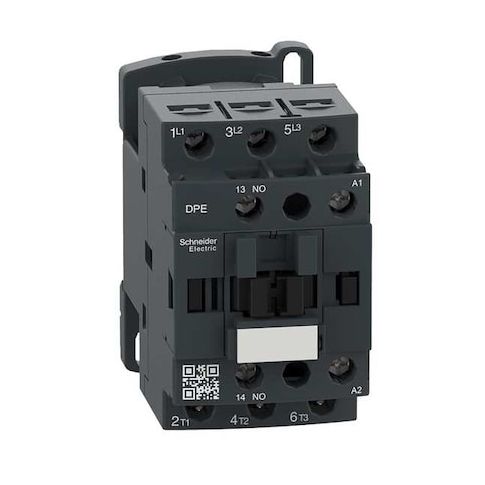

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE12G7
The Schneider IEC Magnetic Contactor is a reliable and efficient solution for control panel applications. Rated for 120V AC operation, it features 3 poles and 3 normally open main contacts, making it suitable for a wide range of industrial and commercial use cases. The TeSys Easy design ensures easy integration and minimal installation time. With a durable construction and tested performance, this contactor is ideal for applications requiring high switching capacity and reliability, such as motor control, lighting systems, and HVAC equipment. It also meets relevant standards for overvoltage protection and switching requirements.
Top product features:
- It has 3 normally open main contacts for reliable switching and control.
- It includes 1 auxiliary normally open (1NO) contact for added functionality and flexibility.
- It is rated for operation within a wide frequency range, allowing for stable performance in various applications.
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- Power Distribution Panels
The IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified load types and conditions. It is rated for operation with a 120 V AC coil within specified parameters and is part of the TeSys Easy family, built to IEC standards for modular control panels.
- Coil voltage: 120 V AC
- - Poles and main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 1 auxiliary normally open (1NO)
- Includes auxiliary contacts: Yes
- - Reversing: Non-Reversing
- - Contactor style/series: IEC
- TeSys Easy
- - Rated voltage and insulation: rated for use at voltages up to 690 V AC, 300 V DC
- rated insulation voltage up to 600/690 V (within applicable standards)
- - Enclosure and protection: conforms to specified enclosure ratings and ingress protection levels as designated
- - Dimensions and weight: Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- Net weight 0.32 kg
- - Durability: tested for durability under standard testing procedures but does not guarantee specific lifespan in all conditions
- - Frequency and switching: rated for operation within these frequency ranges and electrical parameters as specified
- - Power and performance: rated for loads up to these wattage and horsepower levels under normal operating conditions
- - Rated making/breaking: capable of handling currents up to these capacities when used according to specifications
- - Electrical characteristics: meets the specified electrical characteristics when operated within recommended parameters but does not imply guaranteed performance beyond those limits
- - Protection and standards: complies with relevant standards related to overvoltage categories and minimum switching requirements but does not guarantee performance outside standard test conditions or intended use cases
- - Other: Fuse Amps 10 A (Signalling Circuit)
- 25 A (Type 1 Power Circuit)
- 20 A (Type 2 Power Circuit)
- Environmental attributes Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3
- Mounting: DIN Rail, Plate
- Mounts On Plate, Rail
- Terminal connection: Screw Clamp
- Minimum and maximum operating temperatures listed (-40°F to 140°F)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.10
- Package Weight: 0.75
