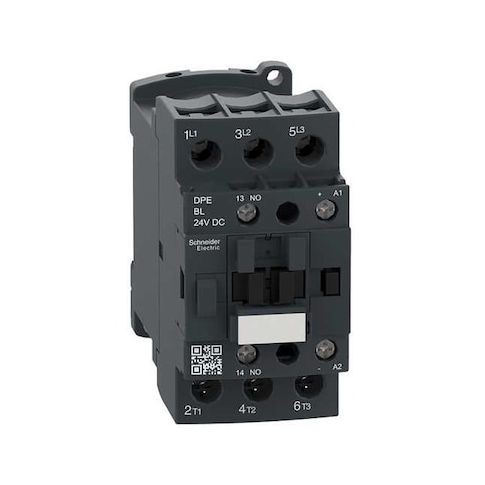

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:DPE38BL

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, 24 V DC coil device with screw clamp terminals. It features 3 main normally open contacts and 1 NO auxiliary contact (1NO), and is part of the TeSys Easy family for IEC-standard control of motor control and resistive-load circuits. It is rated for operation within the specified voltage ranges and designed for use within standard electrical parameters. Mounting options are compatible with common installation practices.

  Key features

• - Poles/contacts: 3 poles
• 3 main normally open contacts
• 1 auxiliary contact (1NO)
• - Coil voltage: 24 V DC
• - Reversing: Non-Reversing
• - Series/Frame: TeSys Easy (TeSys)
• - Electrical ratings: Rated for operation within the specified voltage ranges
• 50/60 Hz
• - Enclosure/mounting: IP20
• No enclosure
• DIN Rail, Plate mounting
• - Connection: Screw Clamp terminals
• - Durability: Mechanical 10 Mcycles
• Electrical 1,000,000 (AC-3)
• 600,000 (AC-1)
• - Load/current: Full Load Amps 38 A (inductive and resistive)
• - Dimensions/weight: Depth 3.62 in
• Height 3.35 in
• Width 1.77 in
• Net weight 0.375 kg
• - Signalling/operating: Electrical specifications provided are based on standardized testing conditions and do not imply guaranteed performance under all circumstances.
• - Standards: CSA, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
• - Special features: Without Built-In Suppressor Module
• - Application: Motor Control, Resistive Load
