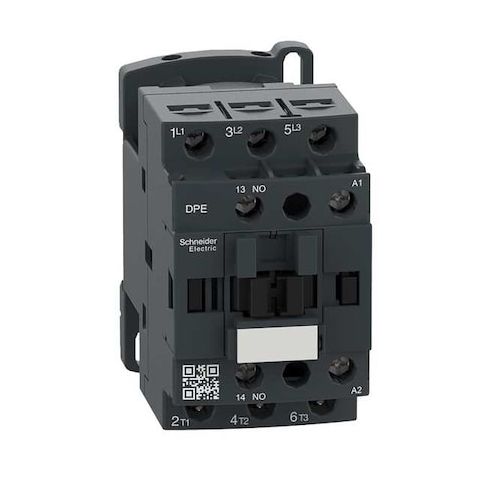

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE18B7

• The item is an IEC Magnetic Contactor (TeSys Easy), a 3-pole, non-reversing device with a 24 V AC coil. It provides three normally open main contacts and one normally open auxiliary contact, wired via screw clamp terminals. This IEC-style contactor is suitable for motor control and resistive load applications, rated for operation within the specified voltage ranges at 50/60 Hz, with a full-load current of 18 A for both inductive and resistive conditions. It is suitable for DIN rail or plate mounting according to installation guidelines and has an IP20 enclosure rating as per standard classifications.

  Key features

• - Application: Motor Control, Resistive Load
• - Coil Voltage: 24 V AC
• - Poles/Main Contacts: 3 poles
• 3 NO main contacts
• - Auxiliary Contacts: 1 NO
• - Reversing: Non-Reversing
• - Series/Style: TeSys Easy
• IEC Contactor
• - Mounting: DIN Rail, Plate
• - Electrical Connection: Screw Clamp Terminals
• - Maximum/Rated Voltage: 690 V AC
• 300 V DC
• - Frequency: 50/60 Hz
• - IP Rating: IP20
• - Full Load Current: 18 A (Inductive/Resistive)
• - Durability: Mechanical 10 Mcycles
• Electrical 1,000,000 cycles (signalling 600,000 cycles)
• - Embedded Surge Suppressor: No
• - Operating Times: 12–22 ms (Closing)
• 4–19 ms (Opening)
• - Standards: UL Listed
• CSA
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
